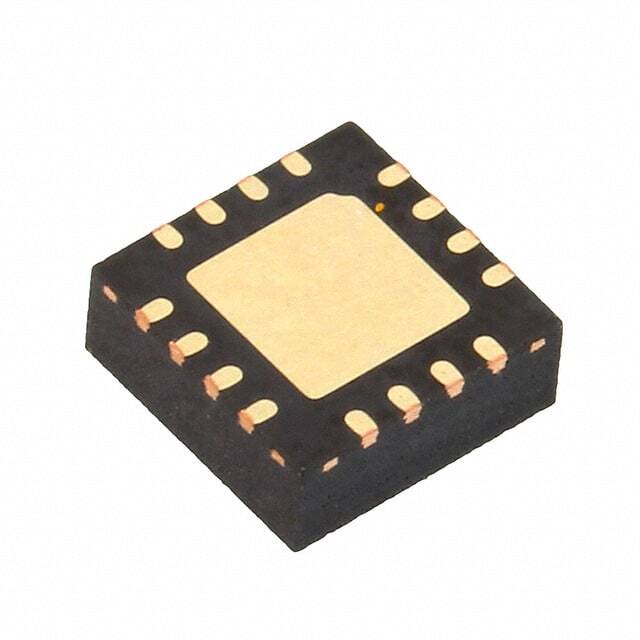

Same model may have multiple batches, images only for reference.
MASW-000936-14000T
Same model may have multiple batches, images only for reference.

MASW-000936-14000T

Part No MASW-000936-14000T
Manufacturer M/A-Com Technology Solutions
Catalog RF Switches
Description IC RF SWITCH SPDT 6GHZ 16QFN
Datasheet
MASW-000936-14000T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Switches
Mfr M/A-Com Technology Solutions
Package Tape & Reel
Product Status Active
RF Type WiFi, WiMAX
Topology Reflective
Circuit SPDT
Frequency Range 50MHz ~ 6GHz
Isolation 50dB
Insertion Loss 0.2dB
Test Frequency 2.7GHz
IIP3 72dBm
Voltage - Supply ±15V, 28V
Temperature Range - Operating -40°C ~ 85°C
Package / Case 16-LQFN Exposed Pad
Supplier Device Package 16-PQFN (4x4)
Base Product Number MASW-000936
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 847390-MASW-000936-14000T
Ultra Librarian 3D Model Ultra Librarian MASW-000936-14000T CAD Model

Description

The MASW-000936-14000T is an RF switch designed for WiFi and WiMAX applications.

  • Application: WiFi, WiMAX
  • Frequency: 50MHz ~ 6GHz
  • Insertion Loss: 0.2dB
  • Isolation: 50dB
  • Topology: SPDT, Reflective
  • IIP3: 72dBm
  • Package / Case: 16-LQFN Exposed Pad
  • Operating Temperature: -40°C ~ 85°C
  • Product Status: Active
  • Manufacturer: M/A-Com Technology Solutions
