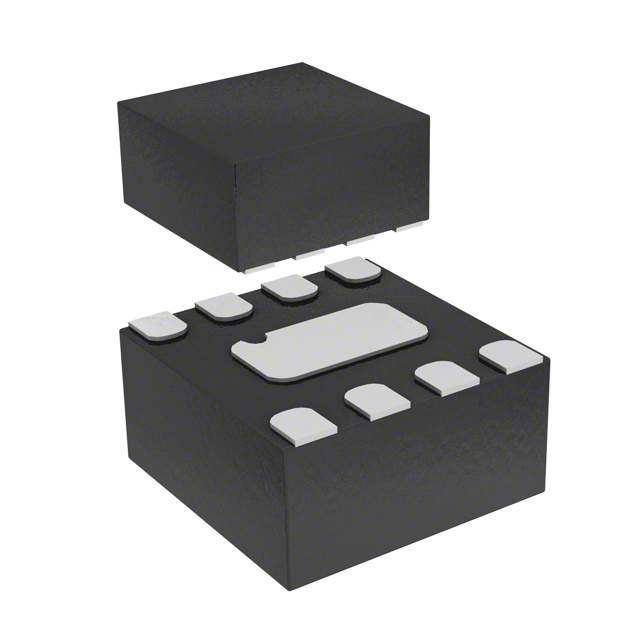

MASW-008955-TR1000 M/A-Com Technology Solutions
Same model may have multiple batches, images only for reference.

MASW-008955-TR1000

Part No MASW-008955-TR1000
Manufacturer M/A-Com Technology Solutions
Catalog RF Switches
Description GaAs SP3T Switch DC - 3.5 GHz
Datasheet
MASW-008955-TR1000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer M/A-Com Technology Solutions
Packaging Reel - TR
Frequency - Lower DC
Frequency - Upper 3.5GHz
Isolation @ Frequency 20dB @ 2.45GHz (typ)
Insertion Loss @ Frequency 0.6dB @ 2.45GHz
Topology Reflective
Circuit SP3T
P1dB 36dBm
Impedance 50 Ohm
Operating Temperature Range -40°C ~ 85°C
RF Type Bluetooth, WLAN
Package 8-VFDFN Exposed Pad
Manufacturer Package 8-PDFN (2x2)
Win Source Part Number 1211827-MASW-008955-TR1000
Manufacturer Homepage www.macomtech.com
Popularity Medium
Supply and Demand Status Limited
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian MASW-008955-TR1000 CAD Model

Description

The MASW-008955-TR1000 is an RF/IF and RFID electronic component that is widely used in various electronic devices and is manufactured by M/A-Com Technology Solutions.

  • Supply and Demand Status: Limited
  • Application: Designed for Bluetooth and WLAN RF types
  • Frequency Range: DC to 3.5GHz
  • Impedance: 50 Ohm
  • Topology: Reflective
  • Insertion Loss: 0.6dB @ 2.45GHz
  • Estimated EOL Date: 2026
  • Package: 8-PDFN (2x2)
