Same model may have multiple batches, images only for reference.

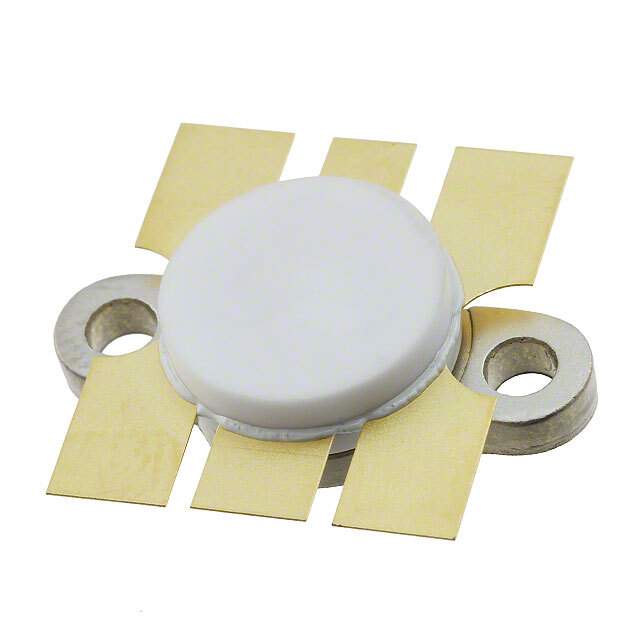

MRF317 Real Image
Same model may have multiple batches, images only for reference.

MRF317

Part No MRF317
Manufacturer M/A-Com Technology Solutions
Catalog Transistors - FETs, MOSFETs - RF
Description TRANS RF NPN 35V 12A 316-01 / Trans RF BJT NPN 35V 12A 4-Pin Case 316-01
Datasheet
MRF317 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer M/A-Com Technology Solutions
Packaging Tray
Transistor Type NPN
Voltage - Collector Emitter Breakdown (Maximum) 35V
Gain 10dB
Power - Max 100W
DC Current Gain (hFE) (Minimum) @ Ic, Vce 10 @ 5A, 5V
Current - Collector (Ic) (Maximum) 12A
Mounting Chassis Mount
Package 316-01
Manufacturer Package 316-01, STYLE 1
Win Source Part Number 789413-MRF317
Popularity Medium
Supply and Demand Status Limited
Family Name MRF317
Introduction Date May 04, 2009
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian MRF317 CAD Model

Description

The MRF317 is an NPN transistor type manufactured by M/A-Com Technology Solutions.

  • Maximum Power: 100W
  • Gain: 10dB
  • Mounting Type: Chassis
  • Package: 316-01 style 1
  • Maximum Collector Current: 12A
  • Maximum Collector-Emitter Breakdown Voltage: 35V
  • Minimum DC Current Gain: 10 @ 5A, 5V
  • Family: MRF317
  • Discrete Semiconductor Product: Yes
  • Introduction Date: May 4, 2009
  • Estimated EOL Date: 2027
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Cross-Reference: MS1202, SD1019, 2N5643, SD1013
