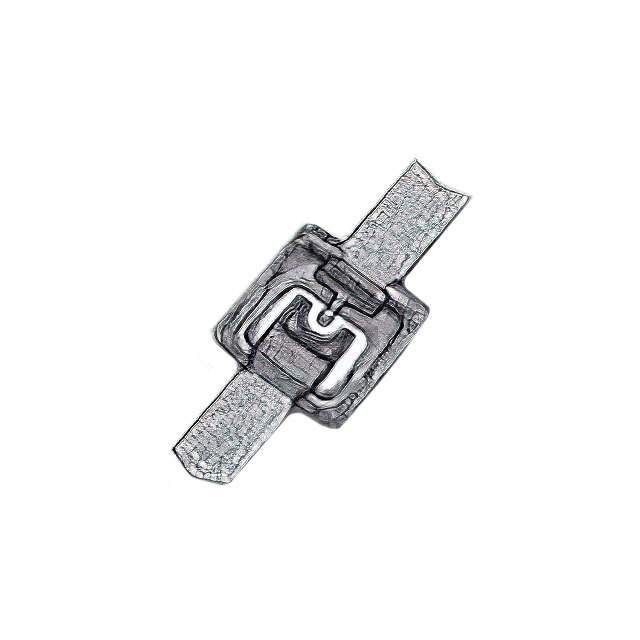

MSS20-141-B10D Real Image
Same model may have multiple batches, images only for reference.

MSS20-141-B10D

Part No MSS20-141-B10D
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description SCHOTTKY DIODE,BEAMLEAD, B10D  /  RF Diode Schottky - Single 1V 35 mA 100 mW B10D
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - RF
Mfr MACOM Technology Solutions
Package Tray
Diode Type Schottky - Single
Voltage - Peak Reverse (Max) 1V
Current - Max 35 mA
Capacitance @ Vr, F 0.08pF @ 0V, 1MHz
Power Dissipation (Max) 100 mW
Temperature Range - Operating -65°C ~ 150°C
Package / Case B10D
Supplier Device Package B10D
Base Product Number MSS20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0060
Other Names 1465-MSS20-141-B10D
Standard Package 25
Win Source Part Number 1199485-MSS20-141-B10D
Ultra Librarian 3D Model Ultra Librarian MSS20-141-B10D CAD Model

Description

The MSS20-141-B10D from MACOM Technology Solutions is a Schottky single diode type component.

  • Maximum Current Rating: 35mA
  • Capacitance: 0.08pF @ 0V, 1MHz
  • Peak Reverse Voltage: 1V
  • Maximum Power Dissipation: 100mW
  • Temperature Range: -65°C ~ 150°C
  • Mounting: surface mountable
  • Package/Case: B10D
  • Supplier Device Package: B10D
