Same model may have multiple batches, images only for reference.

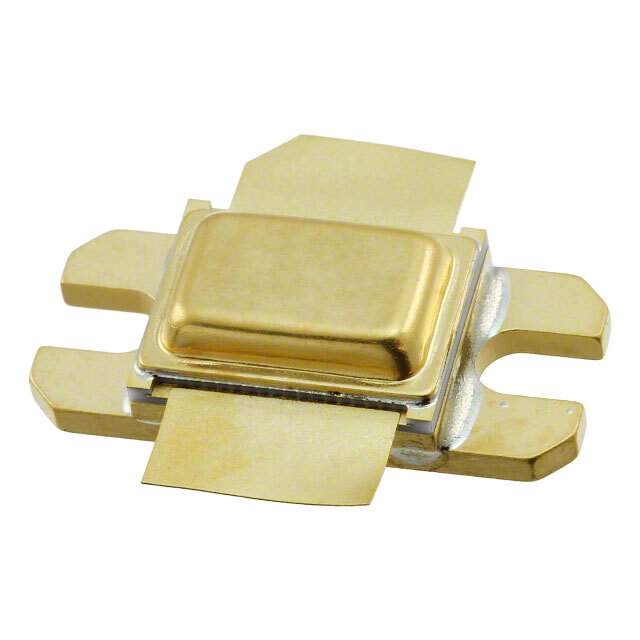

PH1090-550S Real Image
Same model may have multiple batches, images only for reference.

PH1090-550S

Part No PH1090-550S
Manufacturer M/A-Com Technology Solutions
Catalog RF Transistors (BJT)
Description RF TRANS NPN 80V / RF Transistor NPN 80V 28A 550W Chassis Mount
Datasheet
PH1090-550S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - Bipolar (BJT) - RF
Manufacturer MACOM Technology Solutions
Packaging Tray
Transistor Type NPN
Voltage - Collector Emitter Breakdown (Max) 80V
Gain 8.06dB
Power - Max 550W
Current - Collector (Ic) (Max) 28A
Temperature Range - Operating 200°C (TJ)
Mounting Chassis Mount
Base Product Number PH1090
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0040
Other Part Number 1465-1195
Standard Package 20
Win Source Part Number 1325612-PH1090-550S
Ultra Librarian 3D Model Ultra Librarian PH1090-550S CAD Model

Description

The PH1090-550S is a bipolar transistor manufactured by MACOM Technology Solutions.

  • Packaging: Tray packaging
  • Category: Discrete Semiconductor Products
  • Maximum Power: 550W
  • Voltage - Collector Emitter Breakdown: 80V
  • ROHS Compliance: RoHS3
  • ECCN: EAR99
