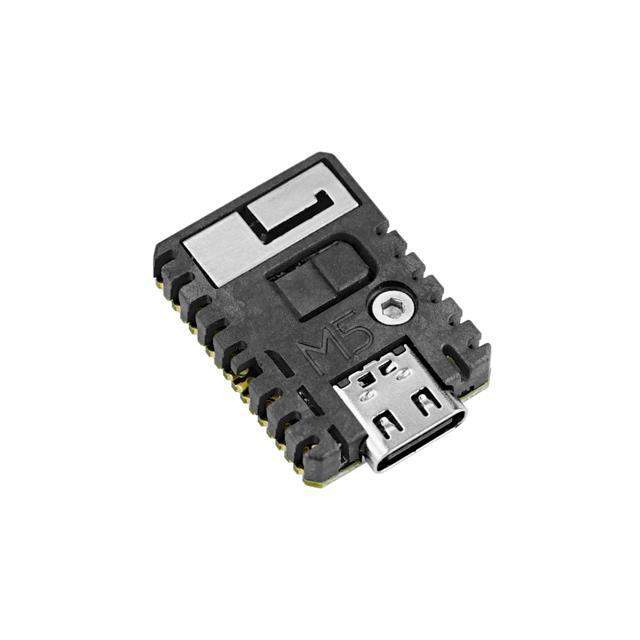

S007 Real Image1
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - Embedded - MCU, DSP
Mfr M5Stack Technology Co., Ltd.
Series ESP32-S
Package Bulk
Type MCU
Core Processor Atom™
Platform -
Utilized IC / Part ESP32-S3FN8
Mounting Type Fixed
Contents Board(s)
Board Type Evaluation Platform
Operating System -
Interconnect System -
Suggested Programming Environment -
Note -
Base Product Number ESP32-S3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN 5A992C 23
HTSUS 8517.62.0090
Standard Package 100 pcs
Win Source Part Number 1383355-S007
Ultra Librarian 3D Model Ultra Librarian S007 CAD Model

Description

The ESP32-S Development Board is an evaluation platform for the ESP32-S3FN8 microcontroller.

  • For Use With / Related Products: ESP32-S3FN8
  • Type: Embedded
  • Package: Bulk
  • Core Processor: Atom™
  • Mounting Type: Fixed
  • Moisture Sensitivity Level (MSL): 1 = Unlimited
  • Manufacturer: M5Stack Technology Co., Ltd.
  • Series: ESP32-S
  • Product Type: Evaluation Platform
