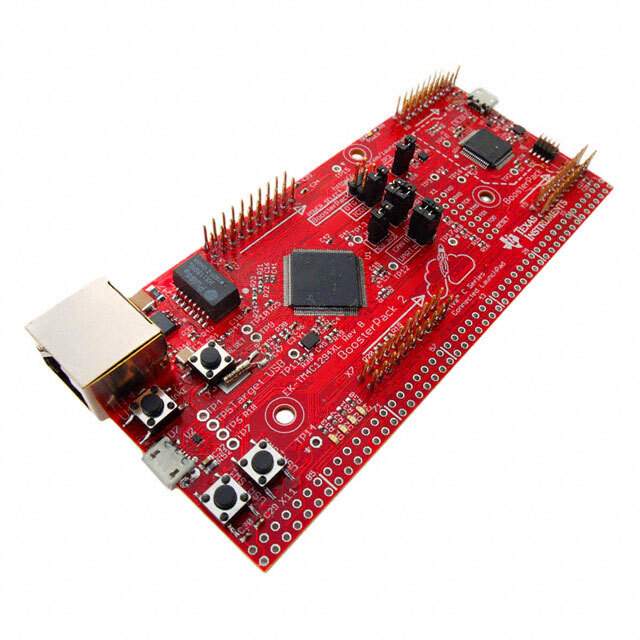

The EK-TM4C1294XL is a highly capable evaluation kit from Texas Instruments designed for engineering professionals and enthusiasts alike to explore the capabilities of the TM4C1294NCPDT microcontroller. This microcontroller is part of the Tiva™ C series, well-known for its robust ARM® Cortex™-M4F based processors. The evaluation kit serves as an ideal platform for developing Internet of Things (IoT) applications, as well as other complex embedded systems.

Key Features

• ARM® Cortex™-M4F Core: The TM4C1294NCPDT MCU boasts a 120-MHz processor with a floating-point unit for efficient computation and signal processing.
• Integrated Connectivity: The kit includes Ethernet MAC+PHY, USB 2.0, CAN, and a host of serial communication interfaces.
• Generous Memory: With 1MB Flash and 256KB SRAM, it provides ample space for program storage and runtime memory management.
• On-Board Debug Interface: In-Circuit Debug Interface (ICDI) allows for straightforward debugging without the need for additional hardware.
• Expansion Options: Two BoosterPack XL interfaces enable the addition of custom functionality and modules to expand the capabilities of the development kit.
• QEI Inputs: Quadrature Encoder Inputs are available for motion control applications.

Development Support

The EK-TM4C1294XL is supported by comprehensive software examples available in the TivaWare™ for the C Series software package. This includes libraries for peripheral access, as well as example projects to kick-start development. Integrated development environments (IDEs) such as Code Composer Studio™ (CCS) and IAR Embedded Workbench can be used to develop and debug applications.

Applications

The versatility of the EK-TM4C1294XL makes it suitable for a wide range of applications, including but not limited to industrial automation, home automation, point-of-sale machines, and medical devices. Its rich set of peripherals and interfaces, coupled with the powerful ARM Cortex-M4F core, make it an excellent choice for complex, demanding embedded systems.

Overall, the EK-TM4C1294XL from Texas Instruments is a feature-packed development kit that provides a solid foundation for creating cutting-edge embedded applications and IoT solutions.
