Same model may have multiple batches, images only for reference.

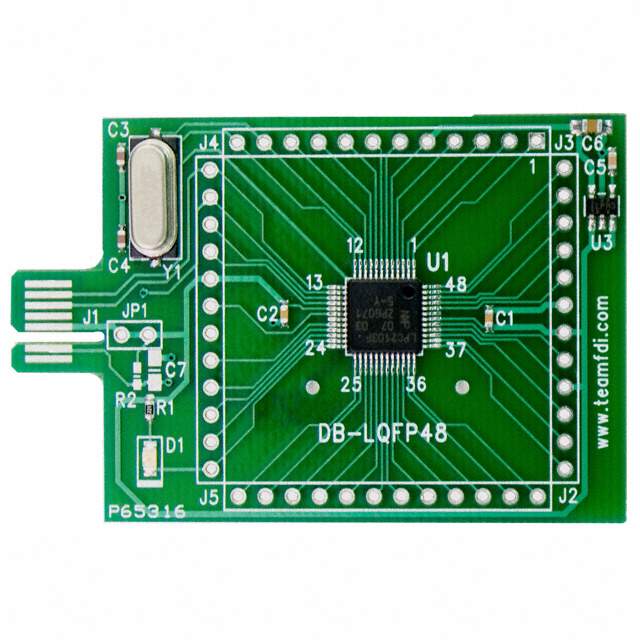

DB-LQFP48-LPC2103 Real Image
Same model may have multiple batches, images only for reference.

DB-LQFP48-LPC2103

Part No DB-LQFP48-LPC2103
Manufacturer Future Designs Inc.
Catalog Evaluation Boards - Embedded - MCU, DSP
Description BOARD FOR LPC2103 48-LQFP / USB-DONGLE AND DERIVATIVE BOARDS
Datasheet
DB-LQFP48-LPC2103 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Future Designs Inc.
Series LPC2100
Board Type Evaluation Platform
Type MCU 32-Bit
Core Processor ARM7
Platform USB-Dongle Derivative Board
For Use With/Related Products LPC2103
Mounting Fixed
Contents Board(s)
Win Source Part Number 779992-DB-LQFP48-LPC2103
Popularity Medium
Supply and Demand Status Limited
Introduction Date January 24, 2008
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian DB-LQFP48-LPC2103 CAD Model

Description

The Future Designs Inc. evaluation platform board(s) is designed for use with LPC2103 microcontroller from Future Designs Inc..

  • Core Processor: ARM7
  • Type: USB-Dongle Derivative Board
  • Mounting Type: Fixed
  • Operating System: No OS
  • Introduction Date: January 24, 2008
  • Obsolete/EOL Date: Estimated EOL date
