Same model may have multiple batches, images only for reference.

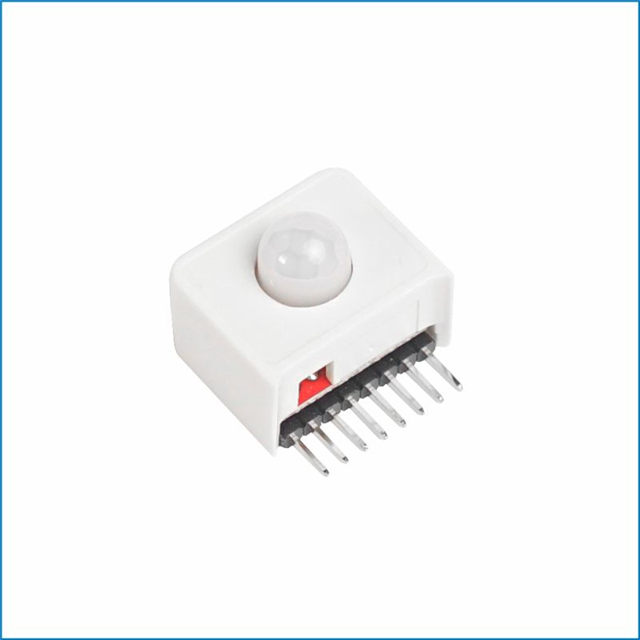

U054 Real Image
Same model may have multiple batches, images only for reference.

U054

Part No U054
Manufacturer M5Stack Technology Co., Ltd.
Catalog Evaluation Boards - Expansion Boards
Description M5STICKC PIR HAT (AS312)  /  AS312 Passive Infrared (PIR) Sensor M5StickC Platform Evaluation Expansion Board
Datasheet
U054 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - Expansion Boards, Daughter Cards
Mfr M5Stack Technology Co., Ltd.
Package Box
Platform M5StickC
Type Sensor
Function Passive Infrared (PIR)
Utilized IC / Part AS312
Contents Board(s)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.9860
Other Names 2221-U054
Standard Package 1
Win Source Part Number 1111631-U054
Ultra Librarian 3D Model Ultra Librarian U054 CAD Model

Description

This electronic component is an evaluation board for a passive infrared (PIR) sensor.

  • Win Source Part Number: 1111631-U054
  • Platform: M5StickC
  • IC/Part: AS312
  • Package: Box
  • Category: Development Boards, Kits, Programmers
  • Standard Package: 1
