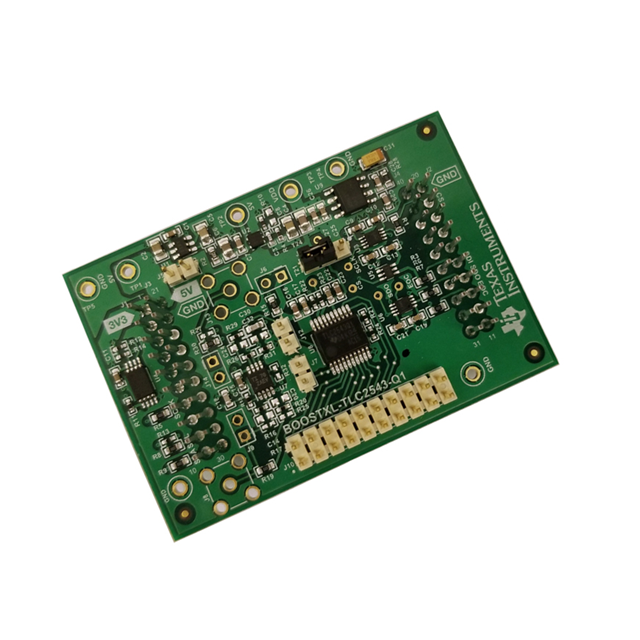

The TLC2543Q1 from Texas Instruments is a highly integrated analog-to-digital converter (ADC) specifically designed for robust and high-precision applications in the automotive and industrial sectors. This device exemplifies the commitment of Texas Instruments to providing advanced technology solutions for complex electronic systems.

Key Features

• 12-Bit Resolution: The TLC2543Q1 offers a 12-bit resolution, ensuring high-precision measurements for critical applications.
• 11-Channel Multiplexer: With an 11-channel single-ended input, this ADC allows for multiple signal inputs, simplifying system design and reducing the need for additional components.
• Serial Interface: The device includes a versatile serial interface compatible with SPI, QSPI, and MICROWIRE protocols, allowing for easy integration into a variety of system architectures.
• Programmable Acquisition Time: Users can program the acquisition time to optimize the conversion process for different signal conditions.
• Auto-Sequencing and Data Storage: The TLC2543Q1 features auto-sequencing of channel selection and has on-chip storage of the digital output, which enhances data throughput and management.
• Extended Temperature Range: Designed to operate over an extended temperature range, this ADC is suitable for harsh environmental conditions often encountered in automotive and industrial applications.

Applications

The TLC2543Q1 is ideal for a variety of applications where accuracy and reliability are paramount. These include:

• Automotive systems such as engine control units, ABS, and in-cabin sensors
• Industrial automation and process control
• Portable instrumentation and battery-operated equipment
• Data acquisition systems

Quality and Reliability

As with all Texas Instruments products, the TLC2543Q1 is manufactured to the highest quality standards. It is designed to meet stringent automotive and industrial requirements, ensuring reliable performance in the most demanding situations.

For further information, datasheets, and support, visit the Texas Instruments official website.
