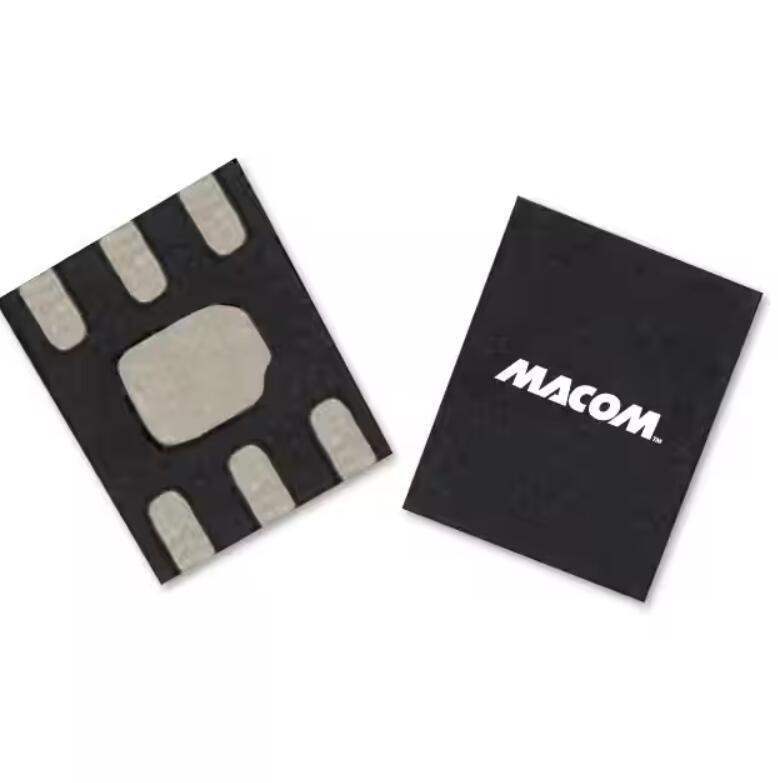

MACP-010571-TR1000 MACOM Technology Solutions
Same model may have multiple batches, images only for reference.

MACP-010571-TR1000

Part No MACP-010571-TR1000
Manufacturer Macronix
Catalog RF Directional Coupler
Description RMS POWER DETECTOR 2-6 GHZ
Datasheet
MACP-010571-TR1000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1196714-MACP-010571-TR1000
Win Source Part Number Cross
Manufacturer MACOM Technology Solutions
Category RF and Wireless RF Directional Coupler
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Coupler Type Standard
Frequency 2GHz ~ 6GHz
Applications General Purpose
Insertion Loss 0.26dB
Power - Max 30dBm
Ultra Librarian 3D Model Ultra Librarian MACP-010571-TR1000 CAD Model

Description

The MACOM Technology Solutions RF Directional Coupler is a general-purpose coupler operating in the frequency range of 2GHz to 6GHz.

  • Frequency Range: 2GHz to 6GHz
  • Maximum Power: 30dBm
  • Insertion Loss: 0.26dB
  • Package Options: Tape & Reel (TR), Cut Tape (CT), or Digi-Reel
  • Product Status: Active
