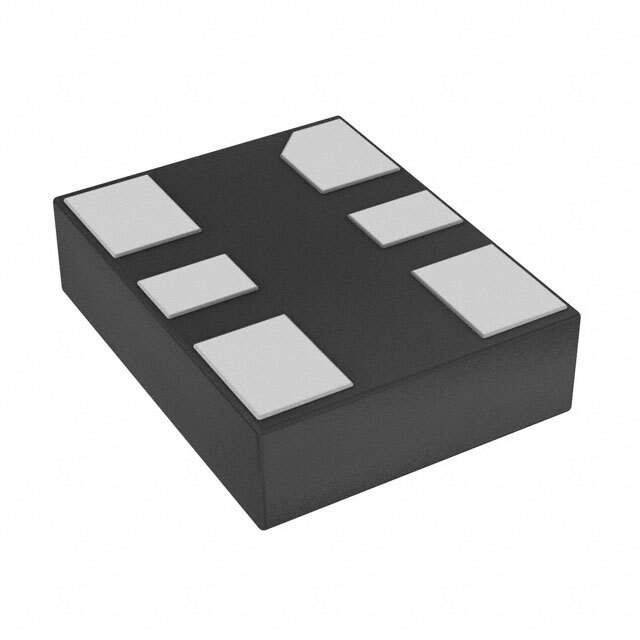

DSC1121CI2-024.0000 Real Image
Same model may have multiple batches, images only for reference.

DSC1121CI2-024.0000

Part No DSC1121CI2-024.0000
Manufacturer Microchip Technology
Catalog Oscillators
Description MEMS OSC XO 24.0000MHZ CMOS SMD  /  24 MHz XO (Standard) CMOS Oscillator 2.25V ~ 3.6V Enable/Disable 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Microchip Technology
Series DSC1121
Package Tube
Base Resonator MEMS
Type XO (Standard)
Frequency 24 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 2.25V ~ 3.6V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 35mA
Ratings AEC-Q100
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 22mA
Base Product Number DSC1121
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names DSC1121CI2-024.0000-ND,576-5015-5
Standard Package 110
Win Source Part Number 1135827-DSC1121CI2-024.0000
Ultra Librarian 3D Model Ultra Librarian DSC1121CI2-024.0000 CAD Model

Description

The DSC1121CI2-024.0000 is a crystal oscillator designed for use in oscillators. It is a part of the DSC1121 series, and is a standard XO type.

  • Frequency: 24 MHz
  • Frequency Stability: ±25ppm
  • Enable/Disable: Yes
  • Packaging: Tube
  • Package: 6-SMD, No Lead
  • Voltage Supply: 2.25V to 3.6V
  • Type: Standard XO
