Same model may have multiple batches, images only for reference.

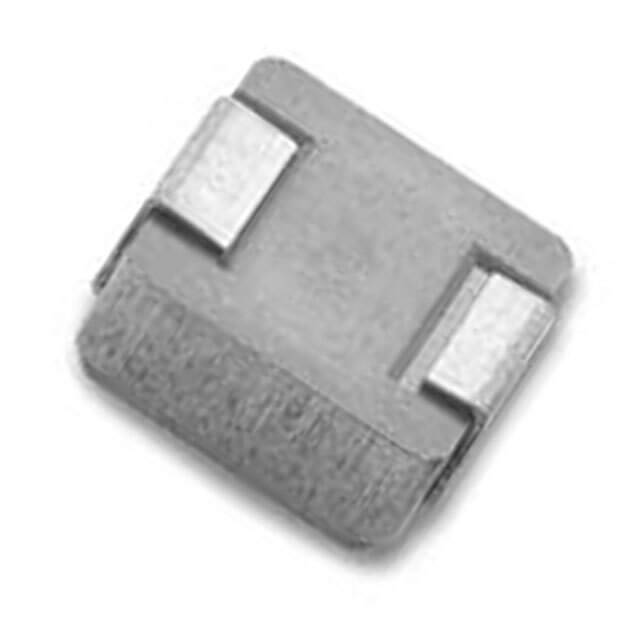

MMD-12EZ-3R3M-V1-RU Real Image
Same model may have multiple batches, images only for reference.

MMD-12EZ-3R3M-V1-RU

Part No MMD-12EZ-3R3M-V1-RU
Manufacturer Mag Layers
Catalog Fixed Inductors
Description FIXED IND 3.3UH 32A 9.2 OHM SMD / 3.3 µH Shielded Molded Inductor 15 A 9.2mOhm Max Nonstandard
Datasheet
MMD-12EZ-3R3M-V1-RU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Mag Layers
Series MMD-12EZ-V1
Package Tape & Reel (TR)
Type Molded
Material - Core Metal
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 15 A
Current - Saturation (Isat) 32A
Shielding Shielded
DC Resistance (DCR) 9.2mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.520" L x 0.508" W (13.20mm x 12.90mm)
Height - Seated (Max) 0.197" (5.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH info available upon request
ECCN EAR99
HTSUS 8504.50.4000
Other Names 2669-MMD-12EZ-3R3M-V1-RUTR
Standard Package 25
Win Source Part Number 1079523-MMD-12EZ-3R3M-V1-RU
Ultra Librarian 3D Model Ultra Librarian MMD-12EZ-3R3M-V1-RU CAD Model

Description

The MMD-12EZ-V1 series is a fixed inductor that belongs to the Inductors, Coils, Chokes category.

  • Type: Molded
  • Shielded: Yes
  • Inductance: 3.3μH
  • Tolerance: ±20%
  • Package: Tape & Reel (TR)
  • Mounting: SMD (SMT)
  • DC Resistance (DCR): 9.2mOhm max
  • Current Rating: 15Amps
  • Height Seated: 0.197" (5.00mm)
  • Temperature Range: -55℃ ~ 125℃
  • Dimension: 0.520" L x 0.508" W (13.20mm x 12.90mm)
  • Manufacturer: Mag Layers
