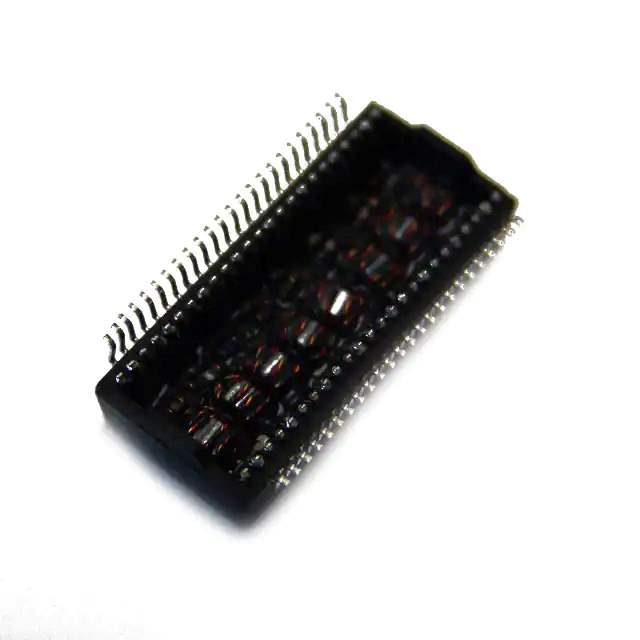

RT11S16-RU Real Image
Same model may have multiple batches, images only for reference.

RT11S16-RU

Part No RT11S16-RU
Manufacturer Mag Layers
Catalog Pulse Transformers
Description DISCRETE PULSE LAN XFMR 10/100
Datasheet
RT11S16-RU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Mag Layers
Series Transformer
Package Tape & Reel
Product Status Active
Transformer Type 10/100 Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.504" L x 0.272" W (12.80mm x 6.90mm)
Height - Seated (Max) 0.222" (5.65mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH info available upon request
ECCN EAR99
HTSUS 8504..50.4000
Win Source Part Number 932464-RT11S16-RU
Ultra Librarian 3D Model Ultra Librarian RT11S16-RU CAD Model

Description

The 932464-RT11S16-RU is a pulse transformer designed for use in transformers in the category of electronic components.

  • Series: Transformer
  • Package: Tape & reel
  • Dimensions: 0.504" L x 0.272" W (12.80mm x 6.90mm)
  • Type: 10/100 Base-T
  • Inductance: 350µH
  • Maximum Seated Height: 0.222" (5.65mm)
  • Standard Package: 10 pieces
  • Mounting: Surface mounted
  • Operating Temperature: 0°C to 70°C
  • MSL Level: 1 (Unlimited)
  • REACH status: Available upon request
  • HTSUS code: 8504..50.4000
  • Manufacturer: Mag Layers
  • Status: Active
