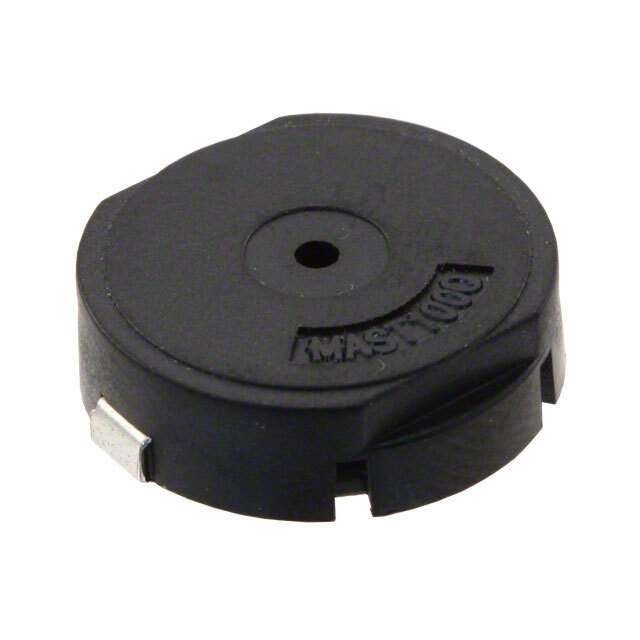

Same model may have multiple batches, images only for reference.

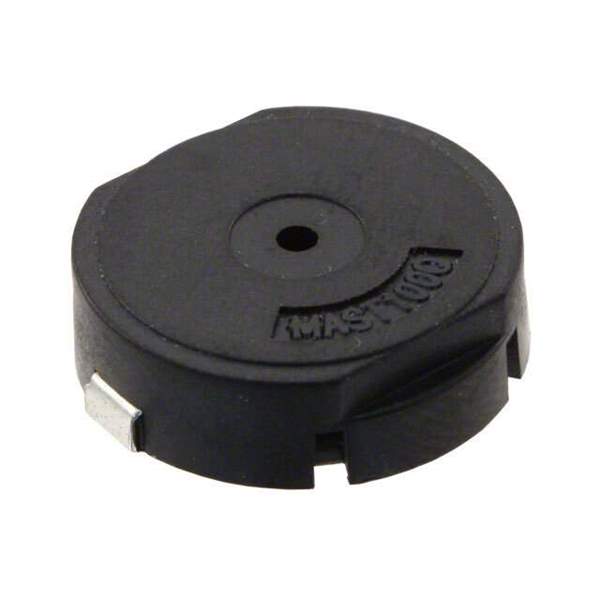

AST100Q Real Image
Same model may have multiple batches, images only for reference.

AST100Q

Part No AST100Q
Manufacturer Mallory Sonalert Products Inc.
Catalog Alarms, Buzzers, and Sirens
Description AUDIO PIEZO TRANSDUCER 1-15V SMD / Audio Indicator Piezo 15Vp-p 1.5mA 5Vp-p 80dBA 3500Hz to 4500Hz Surface Mount Solder Pad Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer Mallory Sonalert Products Inc.
Series AST
Packaging Tube
Driver Circuitry Transducer, Externally Driven
Input Type peak-peak Signal
Voltage Rating DC 5V
Voltage Range 1 ~ 15V
Frequency 4kHz
Technology Piezo
Operating Mode Single Tone
Sound Pressure Level (SPL) 80dB @ 5V, 10cm
Operating Supply Current 1.5mA
Port Location Top
Operating Temperature Range -20°C ~ 70°C
Mounting SMD
Termination Solder Pads
Dimension 0.669" Dia (17.00mm)
Height - Seated (Maximum) 0.205" (5.20mm)
Win Source Part Number 795495-AST100Q
Popularity Medium
Supply and Demand Status Limited
Family Name AST100Q
Introduction Date August 23, 2006
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian AST100Q CAD Model

Description

The AST100Q from Mallory Sonalert Products Inc. is a piezo technology audio product that is used in various applications.

  • Frequency: 4kHz
  • Voltage Range: 1 ~ 15V DC
  • Win Source Part Number: 795495-AST100Q
  • Packaging: Tube
  • Supply and Demand Status: Limited
  • Height Seated: 0.205" (5.20mm)
  • Operating Temperature Range: -20°C to 70°C
