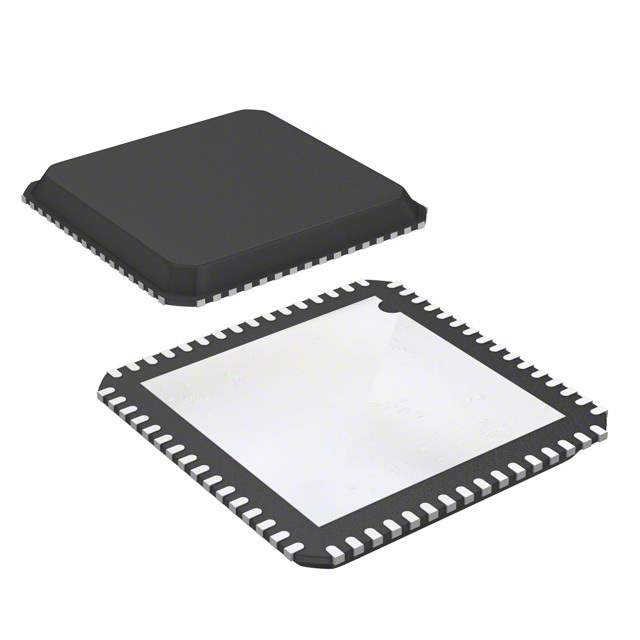

Maxim Integrated Product Overview: 71M6531F-IMR/F

The 71M6531F-IMR/F is a highly integrated Energy Meter IC from Maxim Integrated, designed to provide a comprehensive solution for advanced residential and industrial energy metering applications. This sophisticated system-on-chip (SoC) combines a powerful 8051-compatible processor core with a rich set of features to enable accurate and efficient electrical energy measurement, data processing, and communication.

Key Features

• High Accuracy: The 71M6531F-IMR/F boasts high accuracy energy measurement, which complies with international metering standards. This ensures precise readings for both active and reactive energy consumption, making it ideal for billing purposes.
• Integrated MPU: At the heart of the IC is a low-power, 8051-compatible MPU core, which provides robust processing capabilities for complex metering algorithms and data handling.
• Multi-Function Energy and Power Metering: The device supports various metering functions, including instantaneous voltage, current, power, power factor, and energy accumulation, which are essential for modern energy management systems.
• On-Chip Memory: Equipped with ample on-chip memory, including FLASH and RAM, the 71M6531F-IMR/F can store critical firmware and data, facilitating sophisticated metering applications and firmware upgrades.
• Digital Temperature Compensation: The built-in digital temperature compensation feature ensures reliable operation over a wide temperature range, which is crucial for maintaining accuracy in varying environmental conditions.
• Flexible Communication Interfaces: The IC provides several communication options, including UART, SPI, and an I2C interface, allowing for easy integration with external devices and systems for data transmission and remote management.
• Low Power Operation: Designed with power efficiency in mind, the 71M6531F-IMR/F operates with low power consumption, making it suitable for battery-operated metering systems.

Applications

The 71M6531F-IMR/F is versatile and can be used in a wide range of applications, including:

• Smart residential energy meters
• Industrial and commercial metering systems
• Sub-metering and energy management solutions
• Renewable energy monitoring systems

With its robust feature set and high integration level, the 71M6531F-IMR/F from Maxim Integrated is an excellent choice for developers looking to create sophisticated and reliable energy metering solutions.
