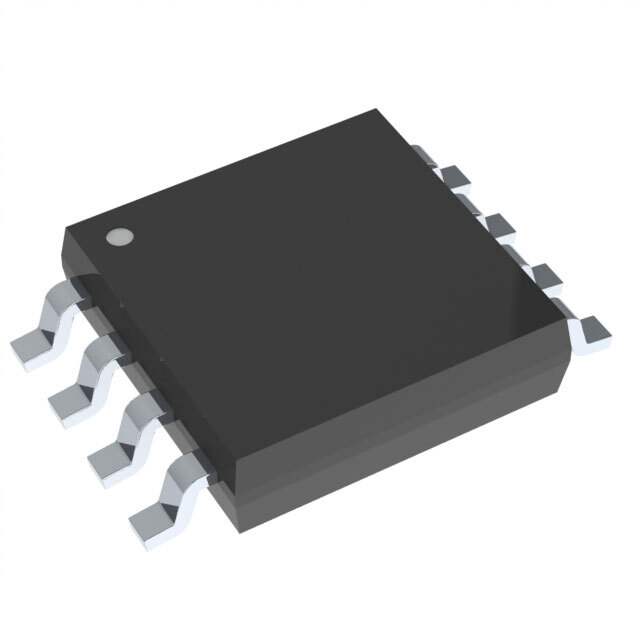

Maxim Integrated DS1869S-50 Digital Potentiometer

The DS1869S-50 is a versatile, digitally-controlled potentiometer designed and manufactured by Maxim Integrated. This compact and efficient device offers a unique solution for adjusting and controlling resistance values in electronic circuits through digital signals, rather than manual adjustments. The DS1869S-50 is particularly ideal for applications where precise and repeatable tuning of resistance is required.

One of the key features of the DS1869S-50 is its wide resistance range of 50kΩ, which provides ample flexibility for various design requirements. The device operates with a dual wiper configuration, which allows for fine adjustment of resistance values between the terminal and wiper or between the two wipers. This feature makes it suitable for applications such as volume control, LCD screen adjustment, and calibration of sensor inputs.

The digital potentiometer is controlled via a 3-wire serial interface, which is compatible with most microcontrollers, making it easy to integrate into existing systems. The DS1869S-50 comes in a small 8-pin SOIC package, minimizing the footprint on printed circuit boards and making it an excellent choice for space-constrained applications.

With a single supply voltage ranging from 4.5V to 5.5V, the DS1869S-50 is designed to work efficiently in most common electronic systems. Its non-volatile memory ensures that the last resistance setting is retained even after the power is cycled, eliminating the need for recalibration at every startup.

Robustness is also a hallmark of the DS1869S-50, as it is designed to withstand harsh operating conditions with an operating temperature range of -40°C to +85°C. This makes it suitable for industrial applications where reliability and durability are critical.

In summary, the Maxim Integrated DS1869S-50 digital potentiometer is a high-performance, reliable, and easy-to-use solution for digitally controlling resistance. Its integration into a wide range of applications demonstrates its versatility and efficiency, making it a top choice for designers and engineers looking to add precision control to their electronic designs.
