Maxim Integrated MAX11049ETN+T ADC

The MAX11049ETN+T from Maxim Integrated is a high-performance, 16-bit, multi-channel Analog-to-Digital Converter (ADC) designed for precision data acquisition systems. This ADC is particularly suitable for applications requiring high accuracy and low noise, such as industrial control systems, medical instrumentation, and automated test equipment.

One of the standout features of the MAX11049ETN+T is its simultaneous-sampling capability, which allows for the accurate capture of multiple analog signals at once. This is particularly important in systems where phase information between channels must be preserved, such as in power quality monitoring or audio processing applications.

The device offers six differential or twelve single-ended input channels, providing flexibility for various signal configurations. The MAX11049ETN+T boasts an impressive sampling rate of up to 200ksps, making it well-suited for handling high-speed signals without sacrificing precision.

With an integrated reference and reference buffer, the MAX11049ETN+T simplifies the design process by reducing the need for external components. Its internal reference has a low temperature coefficient, ensuring stable performance over a wide range of operating conditions. Additionally, the device features a high degree of integration, including an on-chip FIFO, a temperature sensor, and a fault protection mechanism for the analog inputs, enhancing the overall reliability and robustness of the system.

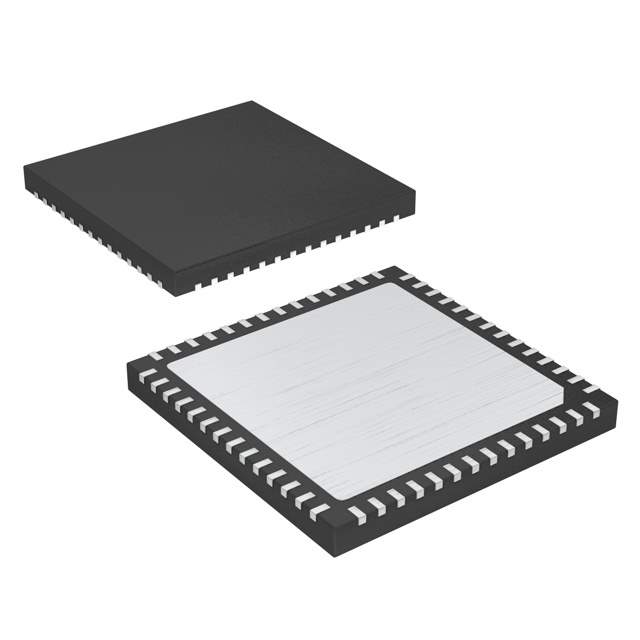

The MAX11049ETN+T operates over the extended temperature range of -40°C to +85°C, making it reliable in harsh environments. The device comes in a compact 56-pin TQFN package, which is space-efficient for designs where board real estate is at a premium.

For ease of interfacing with microcontrollers or digital signal processors, the MAX11049ETN+T supports SPI and QSPI communication protocols. This feature ensures straightforward integration with most digital systems, providing a versatile solution for complex data acquisition needs.

In summary, the Maxim Integrated MAX11049ETN+T ADC is a sophisticated component that offers high resolution, multiple channel inputs, and fast sampling rates, making it the ideal choice for precision measurement and monitoring applications.
