Maxim Integrated MAX14655EWC+T Analog Switch

The MAX14655EWC+T from Maxim Integrated is a high-performance, single-pole/double-throw (SPDT) analog switch designed with precision and miniaturization in mind. It is an ideal solution for applications requiring high-speed switching and low on-resistance. The MAX14655EWC+T is part of Maxim's extensive range of analog switches that are engineered to deliver reliability and efficiency for a variety of applications.

This analog switch operates over a wide voltage range of 1.8V to 5.5V, making it suitable for use in both 3.3V and 5V systems. The MAX14655EWC+T's low on-resistance (RON) of typically 0.5Ω ensures minimal signal distortion and power loss, which is crucial for maintaining signal integrity in sensitive analog applications. The device features a single supply operation, which simplifies design and reduces power consumption, making it an excellent choice for battery-powered and portable devices.

One of the key features of the MAX14655EWC+T is its beyond-the-rails™ signal capability, which allows signals up to 5.5V to pass through without distortion, even when operating from a lower supply voltage. This feature is particularly useful in scenarios where signal levels can exceed the supply voltage, such as in audio and video switching applications.

The MAX14655EWC+T also boasts fast switching times, with a turn-on time of typically 18ns and a turn-off time of typically 10ns, which is essential for applications that require rapid signal routing, such as data acquisition systems and communication devices. The device's high off-isolation of -75dB at 1MHz further ensures that signals are cleanly and efficiently routed without crosstalk or leakage between channels.

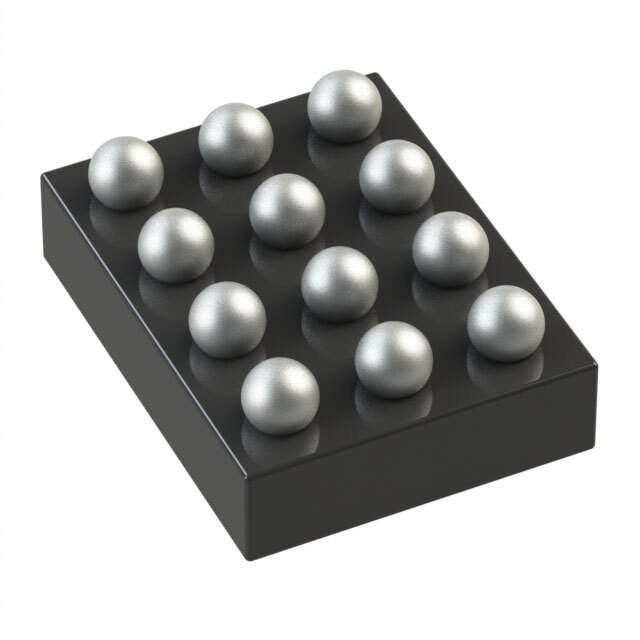

Designed in a compact, 12-bump wafer-level package (WLP), the MAX14655EWC+T occupies minimal board space, making it a perfect fit for space-constrained applications such as smartphones, tablets, and other portable electronics. Its small form factor, combined with its robust feature set, makes the MAX14655EWC+T a versatile and reliable component for designers looking to optimize their systems for performance and size.

Whether you're designing a sophisticated audio interface, a multiplexed data system, or a high-precision measurement device, the MAX14655EWC+T from Maxim Integrated offers the performance and reliability you need to ensure your product's success.
