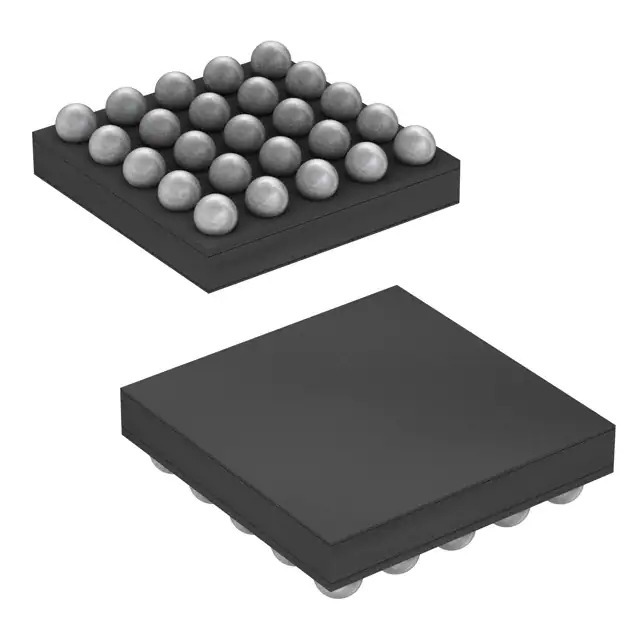

Maxim Integrated MAX14827AWA+T Dual IO-Link Transceiver

The MAX14827AWA+T from Maxim Integrated is a highly integrated dual-channel IO-Link transceiver designed to provide a robust interface for IO-Link device (IOD) applications. This transceiver is specifically engineered to meet the rigorous demands of industrial environments, offering excellent performance and reliability for factory automation and process control systems.

One of the standout features of the MAX14827AWA+T is its dual-channel capability, which allows for the operation of two IO-Link devices within a single package. This not only reduces the footprint on the PCB but also simplifies the design process and saves costs. Each channel is fully IO-Link compliant, ensuring seamless communication between IO-Link masters and devices.

The transceiver operates from a 9V to 36V supply voltage range, making it versatile for various industrial applications. It also includes integrated surge protection and reverse-polarity protection, enhancing the durability and lifespan of the devices it supports. The MAX14827AWA+T is capable of withstanding harsh industrial environments, thanks to its extended -40°C to +125°C temperature range.

It features low on-resistance drivers and C/Q (configurable I/O) pins that can be configured as an input, output, or as an IO-Link interface. The device also includes an integrated regulator, which can be used to power external circuitry, further reducing the need for additional components.

The MAX14827AWA+T comes in a compact 28-pin TSSOP package, making it suitable for space-constrained applications. The integration of diagnostics and LED driver outputs simplifies the indication of the device and channel status, which is crucial for maintenance and troubleshooting in industrial settings.

Maxim Integrated's attention to design for electromagnetic compatibility (EMC) ensures that the MAX14827AWA+T maintains high performance even in the presence of electrical noise, which is common in industrial environments. This transceiver is an ideal solution for designers looking to create efficient, reliable, and cost-effective IO-Link device interfaces.

Overall, the MAX14827AWA+T provides a powerful combination of dual-channel operation, robust protection features, and high integration, making it a top choice for industrial IO-Link applications.
