Maxim Integrated MAX15040EWE+T DC-DC Converter

The MAX15040EWE+T from Maxim Integrated is a high-performance, compact, and efficient DC-DC converter designed to meet the rigorous power supply requirements of modern electronic devices. This step-down converter operates over a wide input voltage range and provides a fixed output voltage with excellent load and line regulation, making it an ideal choice for powering sensitive electronic circuits.

With its integrated high-side MOSFET, the MAX15040EWE+T simplifies the design process by reducing external component count, thereby saving space and cost on the PCB. The device is capable of delivering up to 4A of continuous output current, which makes it suitable for use in a variety of applications, including point-of-load conversions, distributed power systems, and portable devices.

The converter features a high switching frequency of up to 1MHz, allowing the use of small, low-cost inductors and capacitors, resulting in a compact power supply solution. This high frequency also enables fast transient response, ensuring stable operation even under dynamic load conditions. Additionally, the MAX15040EWE+T offers a range of built-in protection features such as over-temperature protection, over-current protection, and undervoltage lockout, enhancing the reliability and longevity of the end application.

Designed with flexibility in mind, the MAX15040EWE+T supports adjustable output voltage via external resistors, allowing designers to tailor the output to meet specific requirements. Furthermore, it includes an enable input for power sequencing and a power-good output for easy power supply monitoring and system health checks.

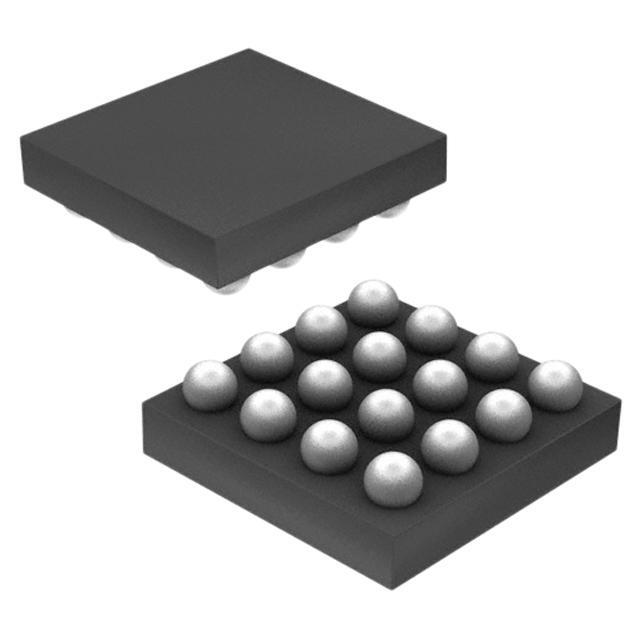

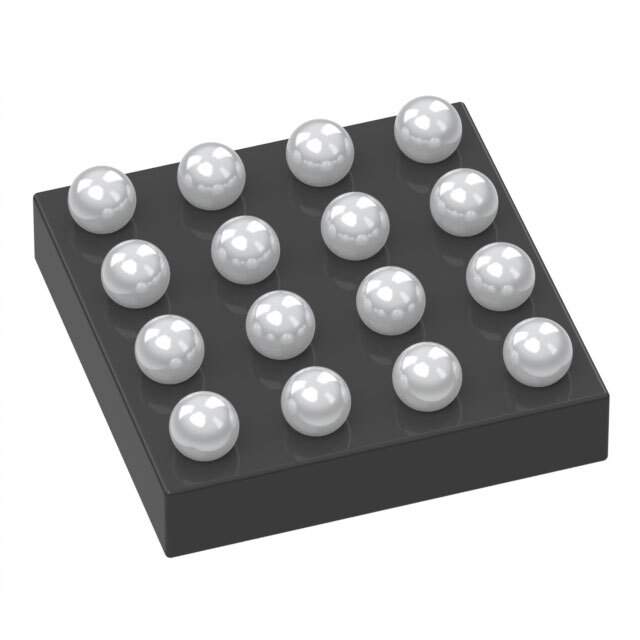

The device comes in a compact 16-pin WLP (Wafer-Level Package) or a 16-pin TSSOP (Thin Shrink Small Outline Package), both of which are suitable for space-constrained applications. The MAX15040EWE+T operates over the industrial temperature range of -40°C to +85°C, ensuring reliable performance in a wide range of environments.

Overall, the Maxim Integrated MAX15040EWE+T is a robust and versatile DC-DC converter that offers high efficiency, advanced features, and a compact footprint, making it an excellent choice for designers looking to optimize their power management solutions.
