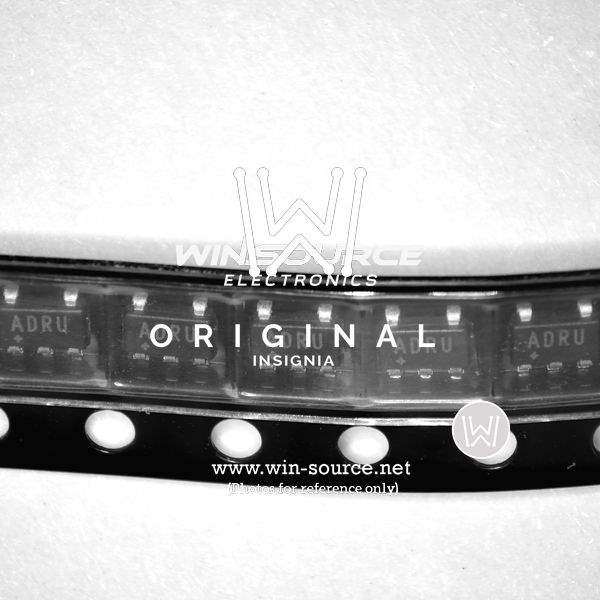

Maxim Integrated MAX1555EZK Battery Charger IC

The MAX1555EZK from Maxim Integrated is a highly efficient, compact, and versatile integrated circuit designed for charging single-cell lithium-ion (Li+) batteries. This tiny powerhouse comes in a 5-pin SOT-23 package, making it an ideal solution for space-constrained applications. The MAX1555EZK caters to the needs of modern portable electronics by providing a safe and reliable charging solution that maximizes the longevity and performance of lithium-ion batteries.

One of the standout features of the MAX1555EZK is its ability to automatically switch between USB and AC adapter power sources. This smart functionality ensures that the device can adapt to the available power supply, making it incredibly convenient for users who are on the go. With the capability to charge from a USB port, the MAX1555EZK offers a charge current of up to 100mA, while an external AC adapter can provide a faster charging rate of up to 280mA.

The charging voltage is preset at 4.2V, which is the optimal charging voltage for Li+ batteries, ensuring that the battery is charged efficiently and safely. The MAX1555EZK also features a charge current monitor, which allows for easy tracking of the charging process. This is particularly useful for applications that require monitoring of the charging status or for implementing custom charging profiles.

Safety is a top priority for any battery charging solution, and the MAX1555EZK is equipped with several protective features. It includes thermal regulation to prevent overheating, a feature that limits the battery temperature during fast charging. Additionally, the chip provides a preconditioning charge mode for deeply discharged batteries, and it has an automatic shutdown when the charging process is complete, preventing overcharging and extending battery life.

With its minimal external component requirement, the MAX1555EZK is not only easy to implement into a design but also helps in reducing the overall bill of materials. This, combined with its high level of integration and safety features, makes the MAX1555EZK an excellent choice for designers looking to create compact, efficient, and reliable products with rechargeable lithium-ion batteries.

Overall, the Maxim Integrated MAX1555EZK offers a convenient and powerful solution for charging single-cell Li+ batteries, making it a top choice for portable consumer electronics, medical devices, and other battery-powered applications.
