The MAX20743EPL+T is a cutting-edge, high-efficiency, synchronous step-down DC-DC converter module from Maxim Integrated, a renowned leader in the development of integrated circuits. This advanced power solution is designed to meet the stringent demands of compact and power-sensitive applications, offering precise voltage regulation and a high level of integration to minimize external component count.

Key Features

• Input Voltage Range: This module operates over a wide input voltage range, typically from 4.5V to 16V, making it versatile for various applications.
• Output Voltage: The output voltage is highly adjustable, allowing for outputs as low as 0.5V up to 5.5V, which can be set using external resistors.
• High Efficiency: With its synchronous rectification technology, the MAX20743EPL+T achieves high conversion efficiency, which is crucial for thermal management and energy-saving in modern electronic devices.
• Integrated MOSFETs: The module includes internal MOSFETs that provide high performance while reducing the footprint on the PCB.
• Current Rating: The device supports a continuous output current up to 15A, making it suitable for high-power applications.
• Protection Features: It includes a comprehensive set of protection features such as over-temperature, over-current, and under-voltage lockout, ensuring the safety and reliability of the power supply and the end application.

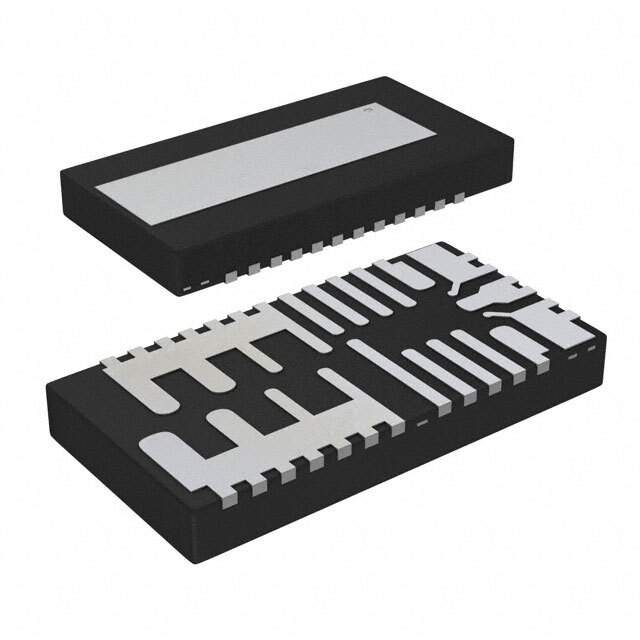

• Compact Package: The MAX20743EPL+T comes in a space-saving, highly efficient, thermally enhanced LGA package that is suitable for automated assembly processes.

Applications

The MAX20743EPL+T is ideal for a wide range of applications, including but not limited to:

• Data centers and servers
• Networking and telecommunications equipment
• Industrial power supplies
• FPGAs, DSPs, and ASIC power supplies

With its robust design and high functionality, the MAX20743EPL+T from Maxim Integrated is an excellent choice for designers looking for a reliable, high-performance power management solution.
