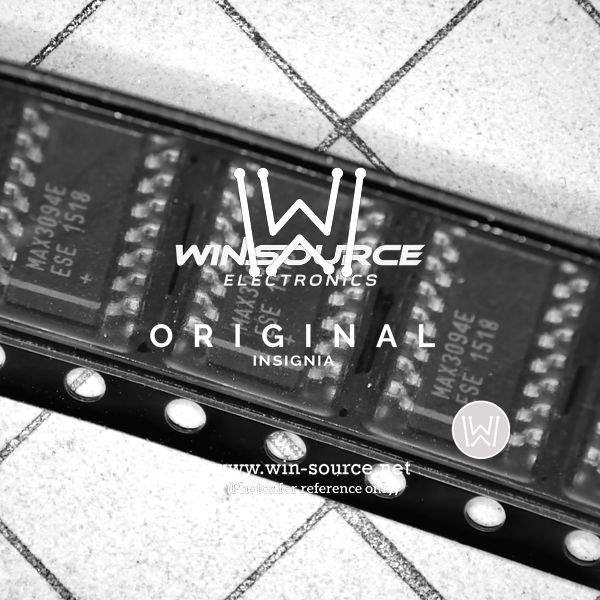

Maxim Integrated MAX3094EESE+ RS-422/RS-485 Receiver

The MAX3094EESE+ is a high-performance, quad, RS-422/RS-485 receiver designed by Maxim Integrated to provide reliable communication with extended common-mode range. This integrated circuit is adept at handling the demands of high-speed data transmission over long distances and in electrically noisy environments, making it an ideal choice for industrial, networking, and telecom applications.

Encased in a 16-pin narrow SO package, the MAX3094EESE+ operates over a wide 3.3V to 5.5V supply voltage range, which makes it suitable for various system designs. Its flexibility is further enhanced by its ability to interface with 5V logic while being powered by a 3.3V supply, catering to mixed-voltage systems.

One of the standout features of the MAX3094EESE+ is its fail-safe feature that ensures a logic-high receiver output when inputs are open, shorted, or idle, thus guaranteeing a fail-safe condition for the receiver. This is particularly important in systems where data integrity and error-free communication are critical.

The receiver boasts a high data rate capability of up to 10Mbps, providing the speed needed for high-throughput applications. Moreover, the MAX3094EESE+ is designed to withstand up to ±15kV electrostatic discharge (ESD) protection on receiver inputs, which significantly enhances its robustness and reliability in harsh environments.

Another important characteristic of this receiver is its extended common-mode range of -7V to +12V, which exceeds the industry standard of ±7V for RS-485/RS-422 receivers. This extended range allows for better tolerance of ground potential differences between devices, thus improving system reliability.

To meet various application requirements, the MAX3094EESE+ features a quarter-unit load receiver input impedance, allowing up to 128 receivers on the bus. Additionally, it is fully specified for operation from -40°C to +85°C, accommodating a broad range of temperature conditions.

In conclusion, the MAX3094EESE+ from Maxim Integrated is a versatile, high-speed RS-422/RS-485 receiver that offers excellent performance and reliability for industrial and communication applications. Its robust design and advanced features ensure that it can meet the stringent requirements of complex and demanding data communication systems.
