MAX3311EEUB - Maxim Integrated

The MAX3311EEUB from Maxim Integrated is a highly reliable and efficient transceiver module designed for RS-232 communication. This compact device is part of Maxim's range of transceivers that are engineered to facilitate serial communication in a variety of applications, including industrial, telecommunications, and consumer electronics.

The MAX3311EEUB operates from a single +3.0V to +5.5V power supply, making it a versatile choice for systems where power efficiency is crucial. It features an onboard charge pump circuitry that generates the necessary RS-232 voltage levels from the single supply, eliminating the need for additional power sources.

With a data rate of up to 460kbps, the MAX3311EEUB provides high-speed data transfer capabilities, which is essential for applications that require quick and reliable data exchange. This high data rate is accompanied by a low-power shutdown mode, which reduces power consumption when the device is not in active use, thereby extending the battery life of portable devices.

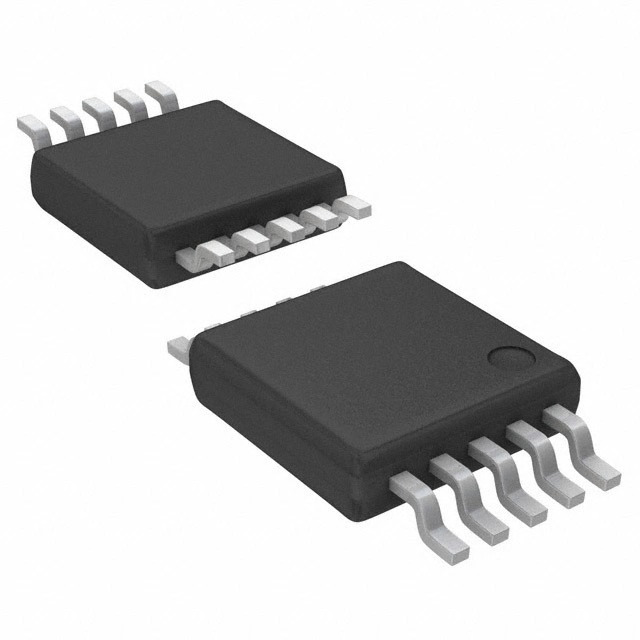

The device comes in a small 10-pin µMAX package, making it ideal for space-constrained applications. Its small size does not compromise its performance, as it includes a slew-rate-limited driver that minimizes electromagnetic interference (EMI) and reduces reflections caused by improperly terminated cables.

The MAX3311EEUB features a 1µA low-current shutdown mode, two drivers, and two receivers. It provides a robust ESD protection of ±15kV using the Human Body Model, ensuring durability and resilience in harsh environments. The inclusion of two receivers allows for the reception of data from two different sources, which can be critical in complex systems where multiple data streams need to be managed.

Maxim Integrated's commitment to high-quality and reliable components is evident in the MAX3311EEUB transceiver. It is a testament to the company's dedication to providing solutions that meet the evolving needs of modern electronic systems. Whether it's for industrial automation, point-of-sale systems, or portable consumer devices, the MAX3311EEUB is a top-tier choice for seamless RS-232 communication.
