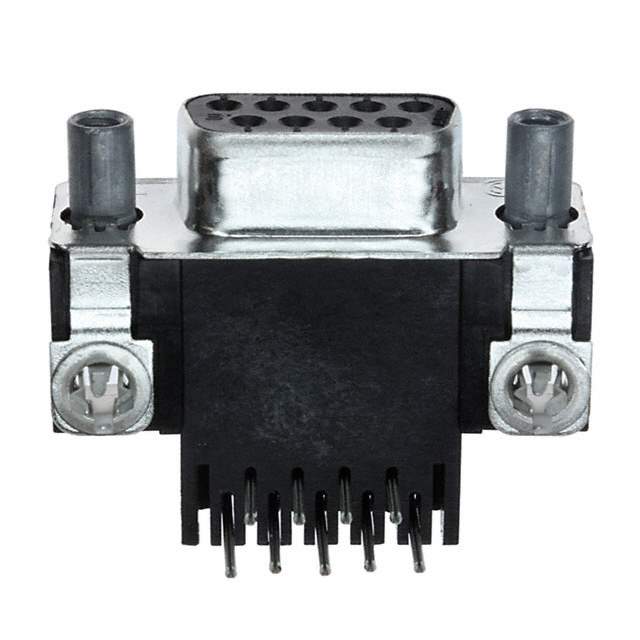

5747836-6 Real Image
Same model may have multiple batches, images only for reference.

5747836-6

Part No 5747836-6
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-SUB RCPT 9POS R/A SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tube
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing 0.590" (14.99mm)
Features Board Lock, Ground Strap
Voltage Rating 125V
Color Black
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747836
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A32139,-5747836-6-SI,2266-5747836-6
Standard Package 17
Win Source Part Number 1016490-5747836-6
Ultra Librarian 3D Model Ultra Librarian 5747836-6 CAD Model

Description

The TE Connectivity AMP Connectors 1016490-5747836-6 is a D-sub connector that has 9 positions and female sockets.

  • Connector Type: D-sub
  • Number of Positions: 9
  • Gender: Female
  • Number of Rows: 2
  • Termination Style: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Voltage Rating: 125V
  • Current Rating: 6A
  • Shell Material: Steel
  • Shell Plating: Tin
  • Mounting Type: Through Hole, Right Angle
  • Operating Temperature: -55°C to 105°C
