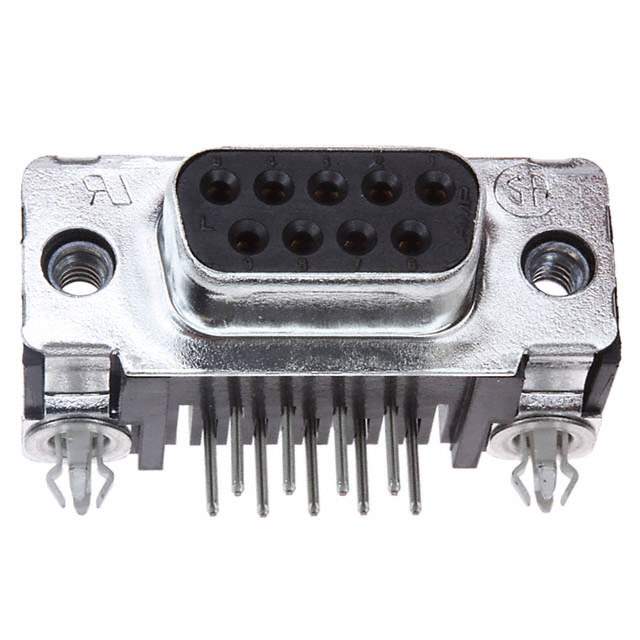

5747844-4 Real Image
Same model may have multiple batches, images only for reference.

5747844-4

Part No 5747844-4
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-SUB RCPT 9POS R/A SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing 0.318" (8.08mm)
Features Board Lock, Ground Strap
Voltage Rating 125V
Color Black
Dielectric Material Thermoplastic
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747844
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -1363575-SI-ND,-1363575-CSI,-5747844-4-CSI,-5747844-4-SI,57478444,A32117,-1363575-SI,-1363575-CSI-ND
Standard Package 130
Win Source Part Number 1024297-5747844-4
Ultra Librarian 3D Model Ultra Librarian 5747844-4 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HD-20 series D-sub connectors are designed to offer a reliable and high-performance connection for a range of applications.

  • Connector Type: Receptacle, Female Sockets
  • Features: Board Lock, Ground Strap
  • Positions: 9
  • Rows: 2
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Contact Material: Phosphor Bronze
  • Shell Material: Steel
  • Shell Plating: Tin Plated
  • Dielectric Material: Thermoplastic
  • Voltage Rating: 125V
  • Current Rating: 6A
  • Flammability Rating: UL94 V-0
  • Temperature Range: -55°C to 105°C
  • Package: Tray
  • Backset Spacing: 0.318" (8.08mm)
