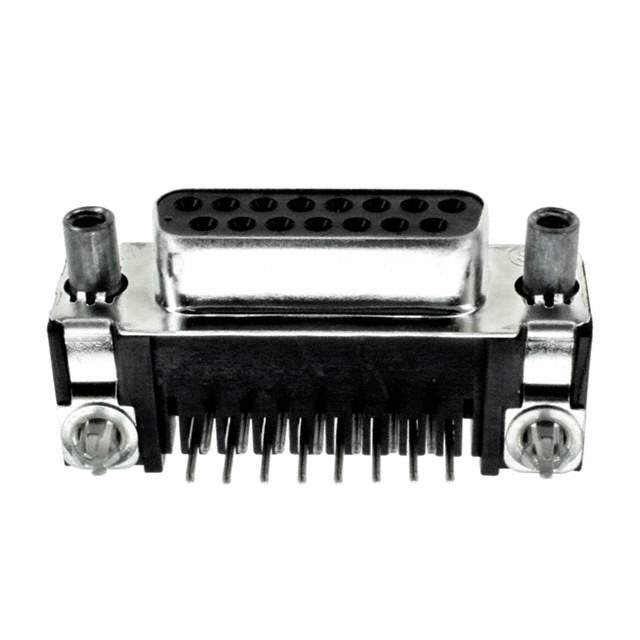

5747845-6 Real Image
Same model may have multiple batches, images only for reference.

5747845-6

Part No 5747845-6
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-SUB RCPT 15POS R/A SLDR / 15 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing 0.318" (8.08mm)
Features Board Lock, Ground Strap
Voltage Rating 125V
Color Black
Dielectric Material Thermoplastic
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747845
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 57478456,-1253072-CSI,A32123,-1253072-SI,-1253072-SI-ND,-5747845-6-CSI,-5747845-6-SI,2266-5747845-6,-1253072-CSI-ND
Standard Package 104
Win Source Part Number 1025869-5747845-6
Ultra Librarian 3D Model Ultra Librarian 5747845-6 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HD-20 series 15-position D-sub connector is a receptacle with female sockets and a black colour.

  • Positions: 15
  • Color: Black
  • Features: Board lock and ground strap
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Dielectric Material: Thermoplastic
  • Shell Material: Steel with a tin plated finish
  • Voltage Rating: 125V
  • Current Rating: 6A
  • Temperature Range: -55°C ~ 105°C
  • Backset Spacing: 0.318" (8.08mm)
  • Flange Feature: Mating side with a female screwlock (4-40)
  • Mounting: Through hole
  • Layout: Right angle
  • Package: Tray
  • Standard Package: 104
