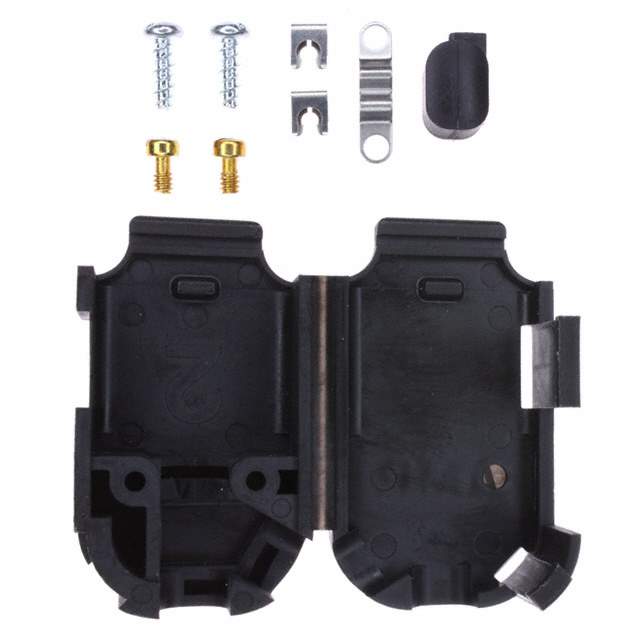

5749915-2 Real Image
Same model may have multiple batches, images only for reference.

5749915-2

Part No 5749915-2
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN BACKSHELL 15POS 120/180DEG  /  15 Position Hinged Backshell Connector Black 120°, 180° Unshielded
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors - Backshells, Hoods
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE Quik-Snap
Package Bulk
Accessory Type Hinged Backshell
Number of Positions 15
Cable Type Round
Cable Exit 120°, 180°
Shielding Unshielded
Material Polypropylene
Hardware Assembly Hardware, Strain Relief
Color Black
Base Product Number 5749915
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Other Names A33673,57499152,-5749915-2-SI,2266-5749915-2
Standard Package 1
Win Source Part Number 1041815-5749915-2
Ultra Librarian 3D Model Ultra Librarian 5749915-2 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE Quik-Snap is a hinged backshell accessory used in D-sub, D-shaped connectors.

  • Accessory Type: Hinged Backshell
  • Connector Shape: D-Sub, D-Shaped
  • Strain Relief and Assembly Hardware: Yes
  • Positions: 15
  • Material: Polypropylene
  • Color: Black
  • Cable Type: Round
  • Shielding: Unshielded
  • Cable Exit Angle: 120 or 180 degrees
  • Packaging: Tape and Reel
  • Applications: Automotive and boardflex-sensitive applications
