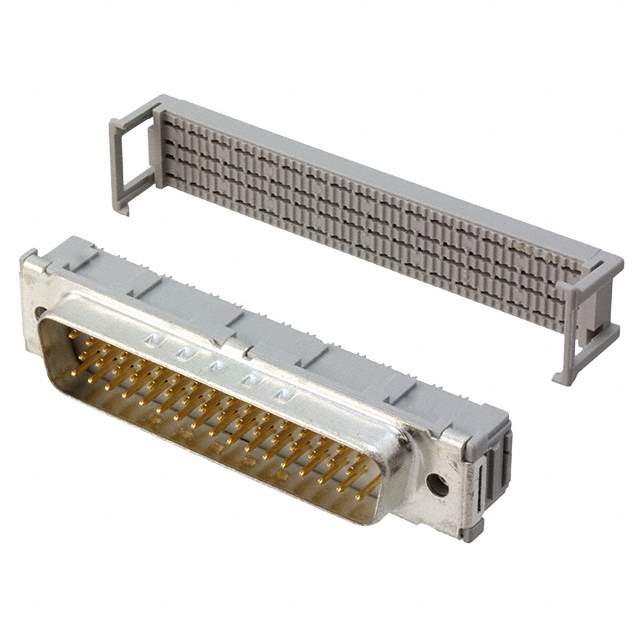

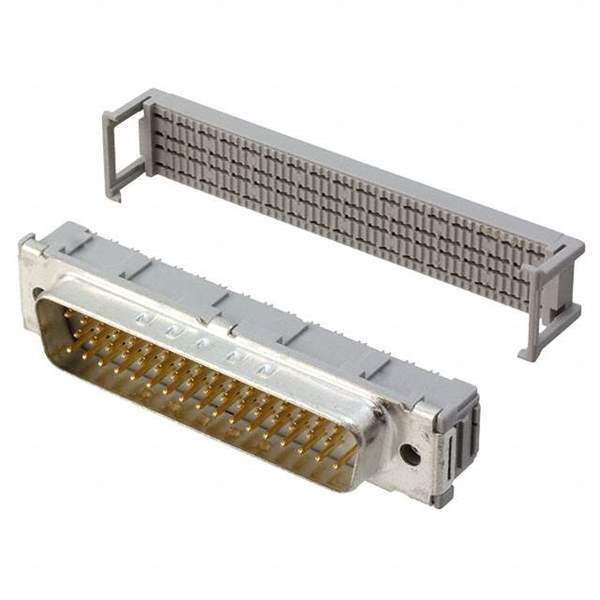

8250-6005 Real Image
Same model may have multiple batches, images only for reference.

8250-6005

Part No 8250-6005
Manufacturer 3M
Catalog D - Sub Connectors
Description CONN D-SUB PLUG 50P PNL MNT IDC / 50 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr 3M
Series 8250
Package Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 50
Number of Rows 3
Mounting Type Panel Mount
Shell Size, Connector Layout 5 (DD, D)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination IDC, Ribbon Cable
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Features Feed Through, Grounding Indents
Color Gray
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 8250
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names 5400745238,7100087829,DE610006699,MML50K,4001895144660,82506005,189514466,MML50G,DE-6100-0669-9,UU004869796,54007452386
Standard Package 200
Win Source Part Number 1033483-8250-6005
Ultra Librarian 3D Model Ultra Librarian 8250-6005 CAD Model

Description

The 8250-6005 is a D-sub connector designed for use in electronic equipment and devices.

  • Connector Type: Male Plug
  • Positions: 50
  • Design: Feed-Through with Grounding Indents
  • Cable Type: Ribbon Cable
  • Termination Type: IDC
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0 μin (0.76 μm)
  • RoHS Compliance: Non-Compliant
  • Temperature Range: -55°C to 105°C
