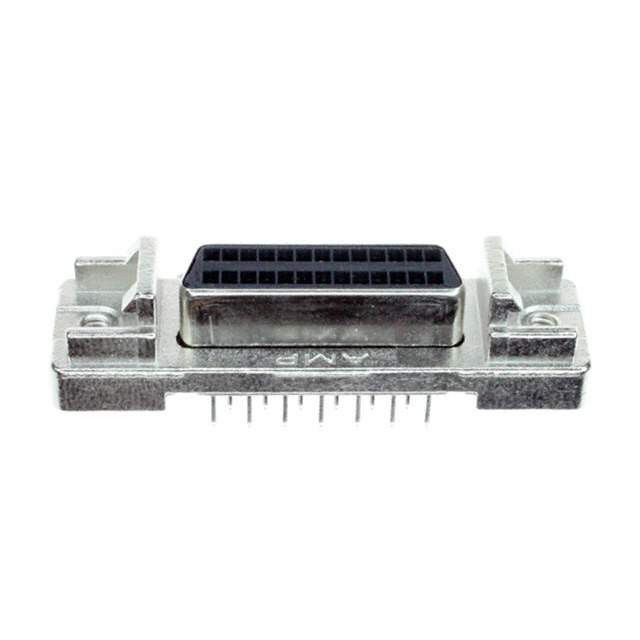

749069-2 Real Image
Same model may have multiple batches, images only for reference.

749069-2

Part No 749069-2
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-TYPE RCPT 26POS VERT SLDR / 26 Position D-Type Receptacle, Female Sockets Connector
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE .050 III
Package Tube
Connector Style D-Type
Connector Type Receptacle, Female Sockets
Number of Positions 26
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Contact Type Signal
Flange Feature Housing/Shell (2-56); Latchblocks, Rails
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Features Shielded
Voltage Rating 30V
Color Black
Dielectric Material Thermoplastic
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 749069
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names A23752,2266-749069-2,749069-2-ND
Standard Package 882
Win Source Part Number 1040021-749069-2
Ultra Librarian 3D Model Ultra Librarian 749069-2 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE .050 III is a D-sub connector series that comes in black color.

  • Positions: 26
  • Shielded: Yes
  • Connector Type: Receptacle female sockets
  • Contact Type: Signal
  • Rows: 2
  • Termination: Solder
  • Contact Finish: Gold
  • Package: Tube
  • Connector Style: D-type
  • Voltage Rating: 30V
  • Operating Temperature: -55°C ~ 105°C
