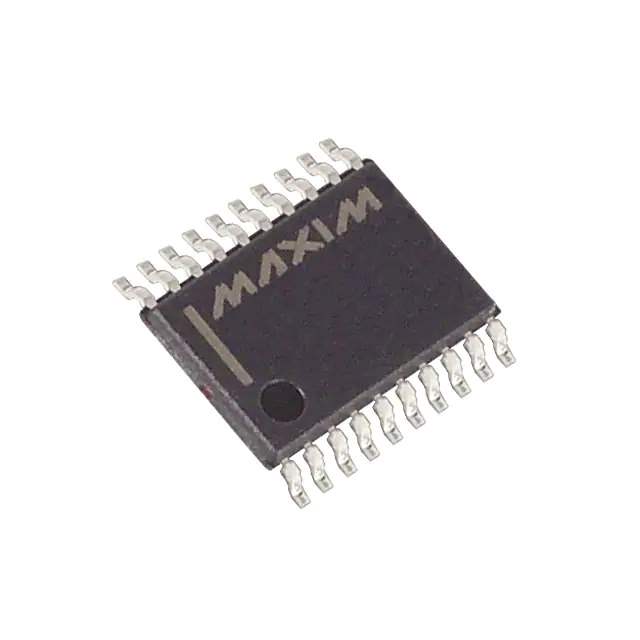

The MAX3318CUP+T from Maxim Integrated is a high-performance RS-232 transceiver designed to meet the demands of modern serial communication systems. This device is part of a family of transceivers that offer a variety of features to ensure reliable data transmission and reception over RS-232 protocols.

Key Features

• Interface Type: RS-232
• Data Rate: Up to 460kbps
• Supply Voltage Range: 2.25V to 5.5V
• Low Supply Current: 1µA in shutdown mode
• Number of Drivers/Receivers: 2/2
• Electrostatic Discharge (ESD) Protection: ±15kV using the Human Body Model
• Package Type: TSSOP-20

Product Benefits

The MAX3318CUP+T is designed for applications requiring low-voltage and low-power operation. With its wide supply voltage range, it is suitable for battery-operated devices and portable applications. The low-power shutdown mode significantly reduces power consumption when the device is not in use, making it ideal for power-sensitive designs.

The device's ESD protection ensures robustness and reliability in harsh environments, making it suitable for industrial and commercial applications where electrical disturbances are common. The high data rate capability allows for fast communication between devices, which is essential for modern equipment that requires quick data transfer.

Applications

The MAX3318CUP+T is versatile and can be used in a variety of applications, including:

• Portable Computing
• Battery-Powered Equipment
• Notebook, Laptop, and Palmtop Computers
• Handheld Equipment
• Peripherals

With its small form factor and high integration, the MAX3318CUP+T is an excellent choice for designers looking to add RS-232 communication capabilities to their projects without sacrificing space or power efficiency.
