Maxim Integrated MAX4684EBC - High-Performance Analog Switch

The MAX4684EBC from Maxim Integrated is a state-of-the-art analog switch designed to cater to a variety of applications requiring low-voltage, single-supply operations. This compact and efficient switch is part of Maxim's commitment to providing high-quality, reliable components for the modern electronics market.

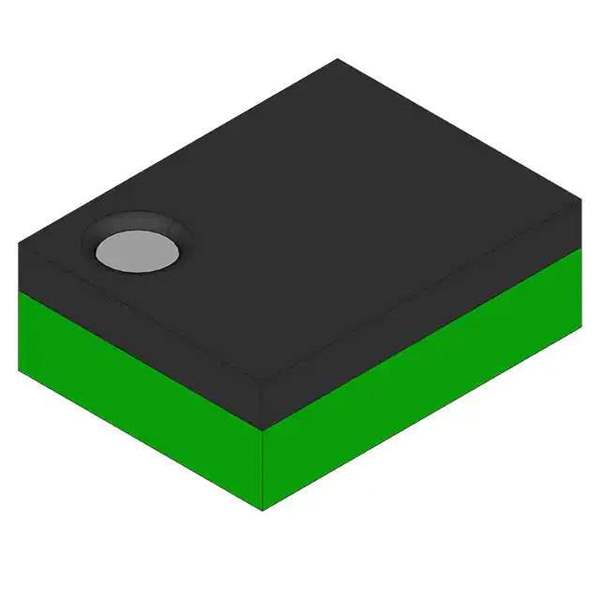

This particular model is housed in a tiny 12-bump chip-scale package (UCSP™), which measures just 1.5mm x 3.0mm, making it an ideal solution for space-constrained applications. The MAX4684EBC operates from a single +1.8V to +5.5V supply, providing design flexibility and compatibility with most low-voltage systems.

One of the key features of the MAX4684EBC is its low on-resistance (R_ON), which is typically 0.6Ω at +5V supply voltage. This low R_ON ensures minimal signal distortion and power loss, making the switch highly efficient for signal routing in precision applications. Additionally, the R_ON is matched between channels to within 0.05Ω and is flat (0.2Ω max) over the specified signal range, which is essential for maintaining signal integrity when switching between channels.

The switch also boasts fast switching speeds, with turn-on and turn-off times typically around 25ns, ensuring that it can keep pace with high-speed signal processing requirements. The MAX4684EBC features break-before-make switching action, which prevents momentary shorting when switching between channels, further preserving the integrity of the signal path.

With its ESD protection exceeding ±15kV using the Human Body Model, the MAX4684EBC can withstand the rigors of handling and operation in real-world conditions. This robustness, combined with its low power consumption and high-performance specifications, makes it an excellent choice for a wide range of applications including audio and video signal routing, communication systems, data acquisition, and portable devices.

Maxim Integrated's MAX4684EBC is a testament to the company's dedication to innovation and quality, providing engineers with a reliable and high-performing solution for their analog switching needs.
