Products specifications

Categories Integrated Circuits (ICs)

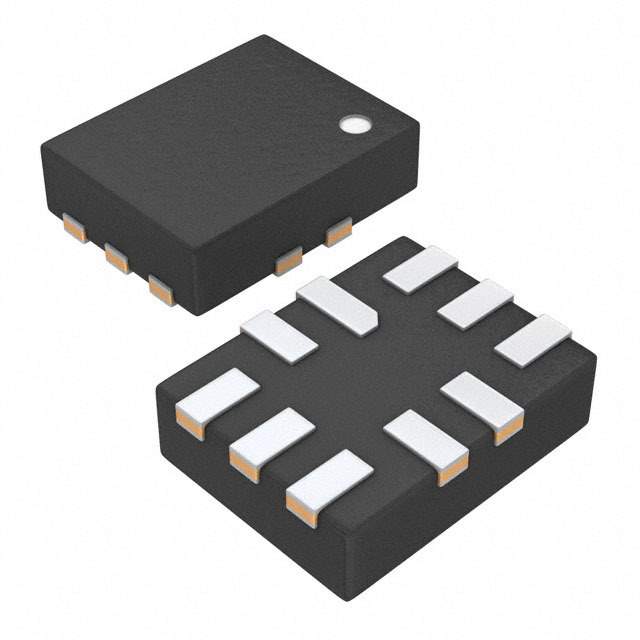

Features USB Switch IC 1 Channel 10-UTQFN (1.4x1.8)
Manufacturer Maxim Integrated
Package Tube
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 10-UFQFN
Case / Package 10-UTQFN (1.4x1.8)
Family Name MAX4983
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number Q10473579, Q10750319
Quantity per package 10
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 844513-MAX4983EEVB+
Ultra Librarian 3D Model Ultra Librarian MAX4983EEVB+ CAD Model

Description

The MAX4983EEVB+ is an innovative solution from Maxim Integrated designed to facilitate the evaluation of the MAX4983E USB 2.0 high-speed, 1xSPDT switch. This evaluation board is engineered to demonstrate the capabilities of the MAX4983E switch in USB 2.0 applications, providing a versatile platform for developers and engineers to test and validate their designs.

Key Features

  • USB 2.0 High-Speed Compliance: The board supports USB 2.0 high-speed data rates, ensuring compatibility with a wide range of USB devices and applications.
  • Low On-Capacitance (C<sub>ON): The MAX4983E switch features low on-capacitance, which minimizes signal attenuation and supports high-quality data transmission.
  • Low On-Resistance (R<sub>ON): With low on-resistance, the switch provides efficient signal switching with minimal voltage drop, preserving signal integrity.
  • ESD Protection: Integrated ESD protection circuits safeguard the USB data lines against electrostatic discharges, enhancing the durability and reliability of the system.
  • Easy Evaluation: The evaluation board comes with convenient test points and a user-friendly interface, simplifying the process of analyzing the switch's performance in various scenarios.

Applications

The MAX4983EEVB+ is suitable for a range of applications where USB switching is required. This includes:

  • USB peripheral devices
  • Desktop and laptop computers
  • Docking stations
  • USB hubs and switches

Technical Specifications

The evaluation board is designed to showcase the technical specifications of the MAX4983E switch, including:

  • Single-pole double-throw (SPDT) switch configuration
  • Powered from a single 2.8V to 5.5V supply
  • Control inputs compatible with 1.8V logic

By providing a hands-on experience with the MAX4983E switch, the MAX4983EEVB+ evaluation board is an essential tool for designers looking to incorporate USB switching capabilities into their next project. Maxim Integrated's commitment to quality and performance is evident in this easy-to-use, feature-rich evaluation platform.
