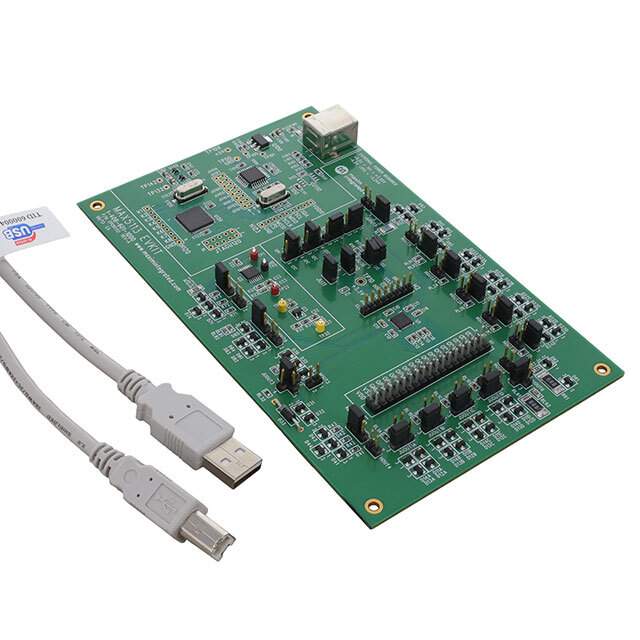

The MAX5113EVKIT# from Maxim Integrated is a comprehensive evaluation kit designed to demonstrate the capabilities of the MAX5113, a high-performance, low-power, serial 10-bit digital-to-analog converter (DAC). This evaluation kit serves as an essential tool for designers and engineers to test and verify the functionality of the MAX5113 DAC in their applications.
Key Features
- 10-bit resolution for precise analog output
- Serial SPI-compatible interface for easy communication with microcontrollers
- Internal reference voltage for standalone operation
- Single-supply operation from +2.7V to +5.5V for versatile power options
- Low power consumption suitable for battery-powered devices
- On-board jumpers for easy configuration and testing
- Proven PCB layout that exemplifies good design practices
Kit Contents
The MAX5113EVKIT# comes with the evaluation board featuring the MAX5113 DAC, along with necessary software for interfacing with a personal computer. The included software provides a user-friendly graphical interface for exercising the features of the DAC.
Applications
The MAX5113 is ideal for a wide range of applications, including:
- Portable battery-powered instruments
- Data acquisition systems
- Industrial process control
- Automatic test equipment
- Digital gain and offset adjustment
Easy to Use
The evaluation kit is designed for ease of use, enabling quick setup and testing. Users can easily connect the board to a PC via the SPI interface, apply power, and use the provided software to control the DAC output. The on-board jumpers allow for easy configuration changes, making it simple to evaluate the full functionality of the MAX5113.
Support and Documentation
Maxim Integrated provides thorough documentation for the MAX5113EVKIT#, including a detailed user manual, application notes, and datasheets. Technical support is also available to assist with any questions or issues that may arise during the evaluation process.
