EVAL-AD5669RSDZ Evaluation Board

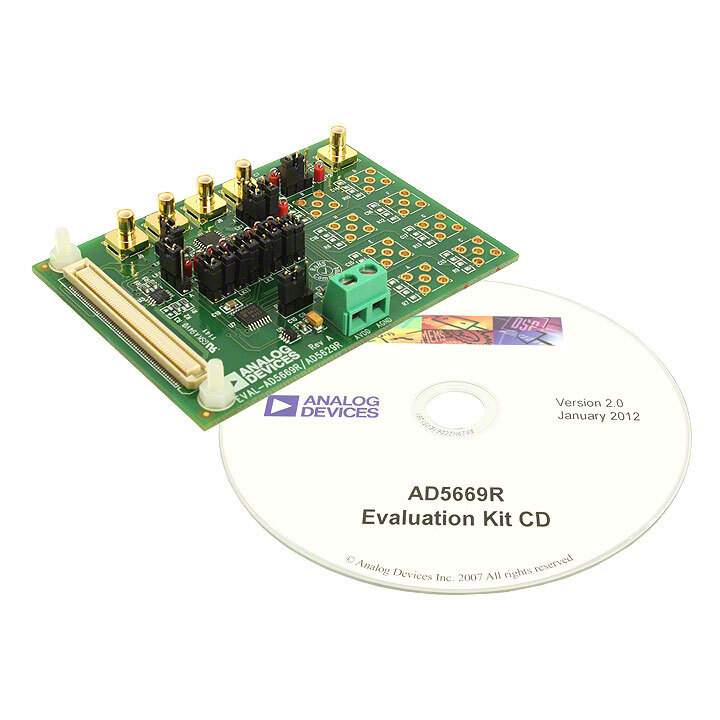

The EVAL-AD5669RSDZ from Analog Devices Inc. is a high-performance evaluation board designed to provide users with an easy-to-use platform for testing and deploying the AD5669R, an octal, 16-bit, I²C-compatible digital-to-analog converter (DAC). This evaluation board is specifically tailored for engineers and designers who require a reliable and precise voltage output in their applications, such as industrial automation, data acquisition systems, and digital gain and offset adjustment.

At the heart of the EVAL-AD5669RSDZ is the AD5669R chip, which includes features such as an internal reference and on-chip output amplifiers that can swing rail-to-rail. This enables the DAC to provide a wide dynamic range and ensures high accuracy in the generated analog output voltages. The chip supports a wide supply voltage range, making it versatile for various applications.

The evaluation board interfaces easily with the user's system through its I²C-compatible serial interface. This allows for straightforward integration with most microcontrollers and digital systems, facilitating rapid prototyping and development. Furthermore, the board includes multiple connectivity options, including edge-mounted SMA connectors, to enable high-quality signal transmission and to ease the connection to external equipment.

For enhanced user experience, the EVAL-AD5669RSDZ comes with dedicated software that provides a graphical user interface (GUI) for controlling the AD5669R DAC. This software simplifies the configuration process, allowing users to program the DAC channels, set output voltages, and explore the full capabilities of the device without the need for extensive coding.

Overall, the EVAL-AD5669RSDZ evaluation board is an indispensable tool for engineers who demand precision and ease of use in their DAC applications. With its robust design, comprehensive software support, and the quality assurance of Analog Devices Inc., this evaluation board is an excellent starting point for developing sophisticated analog output solutions.
