Product Overview: MAX5161NEZT-T from Maxim Integrated

The MAX5161NEZT-T is a precision, low-power, digitally-controlled potentiometer (DCP) from Maxim Integrated, designed to operate as a programmable voltage divider or a variable resistor. This product is part of Maxim's extensive range of DCPs, which are used in applications requiring precise resistance adjustments controlled by digital signals. The MAX5161NEZT-T offers a compact and reliable solution for various applications in the industrial, automotive, and consumer electronics sectors.

Key Features

• Resolution: The device features a 256-tap single potentiometer, which allows for fine-grained resistance adjustments.
• Interface: It comes with a 3-wire SPI-compatible serial interface, facilitating easy communication with microcontrollers and other digital systems.
• Voltage Range: The operating voltage range is 2.7V to 5.5V, making it suitable for both 3V and 5V systems.
• End-to-End Resistance: It offers an end-to-end resistance of 100kΩ, which is typical for applications requiring a higher resistance range.
• Low Temperature Coefficient: The device boasts a low temperature coefficient of 35ppm/°C, ensuring stable performance across a wide temperature range.
• Power Supply: With a low supply current of 150µA (max) and a power-down feature that reduces current to 0.3µA (max), the MAX5161NEZT-T is optimized for power-sensitive applications.

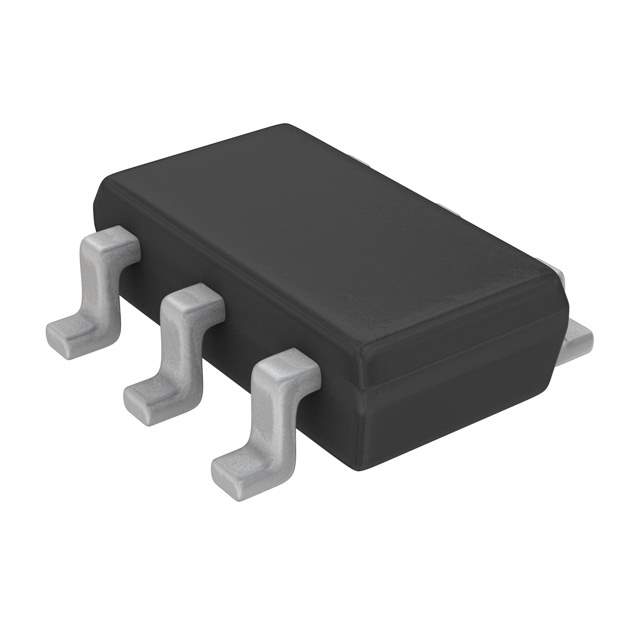

• Packaging: It comes in a small 6-pin Thin SOT23 package, providing a space-saving solution for designs with limited PCB real estate.

Applications

The MAX5161NEZT-T is versatile and can be used in a variety of settings, including:

• Adjustable power supplies
• Gain and offset adjustment
• Automotive electronics
• Portable battery-operated devices
• Industrial control systems

Conclusion

The MAX5161NEZT-T from Maxim Integrated is a high-performance, digitally-controlled potentiometer that offers design flexibility and precision. Its robust feature set and compact size make it an excellent choice for designers looking to integrate digital control into their analog circuits. Whether for fine-tuning a gain in an amplifier circuit or calibrating sensor outputs, the MAX5161NEZT-T delivers consistent and reliable performance in a range of applications.
