Maxim Integrated MAX5231AEEE Dual 10-Bit Voltage-Output DAC

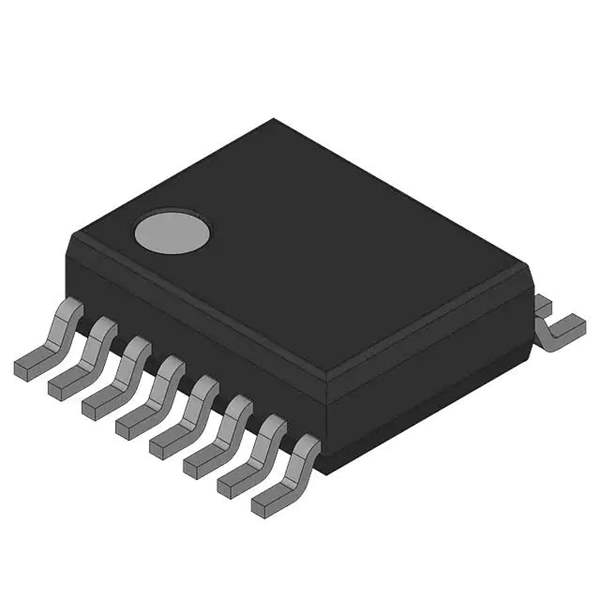

The MAX5231AEEE from Maxim Integrated is a high-precision, dual 10-bit digital-to-analog converter (DAC) designed for applications requiring low power consumption and high accuracy. This component is housed in a compact 16-pin QSOP package, making it suitable for space-constrained applications.

The device offers a voltage-output with two DAC channels, each capable of converting digital input signals into proportional analog voltages. The MAX5231AEEE operates from a single +2.7V to +5.5V supply, providing a versatile power range that accommodates various system requirements. With a built-in reference of 2.048V, the DAC ensures stable and accurate performance over time and temperature variations.

The MAX5231AEEE features a SPI™/QSPI™/MICROWIRE™-compatible serial interface, which simplifies communication with microcontrollers or digital systems. This interface is used to transmit the 16-bit serial words that set the output voltage of each DAC channel. The serial interface also includes a double-buffered input structure, which allows for simultaneous updating of both DAC outputs.

The DAC's flexibility is further enhanced by its programmable shutdown mode, which reduces power consumption to just 0.5µA (typical) when not in use. This makes the MAX5231AEEE an ideal choice for battery-powered and power-sensitive applications. Additionally, the device features a power-on reset circuit that ensures the DAC outputs power up to zero volts and remain there until a valid write to the device takes place.

Applications for the MAX5231AEEE include automated test equipment, data acquisition systems, closed-loop servo control, process control, and portable battery-operated instruments. Its precision and low power consumption make it a reliable choice for designers seeking to optimize performance while maintaining energy efficiency.

Overall, the MAX5231AEEE is a versatile and reliable component that offers excellent performance for a wide range of applications requiring precise analog output from a digital source.
