Maxim Integrated MAX6304CUA Microprocessor (µP) Supervisory Circuit

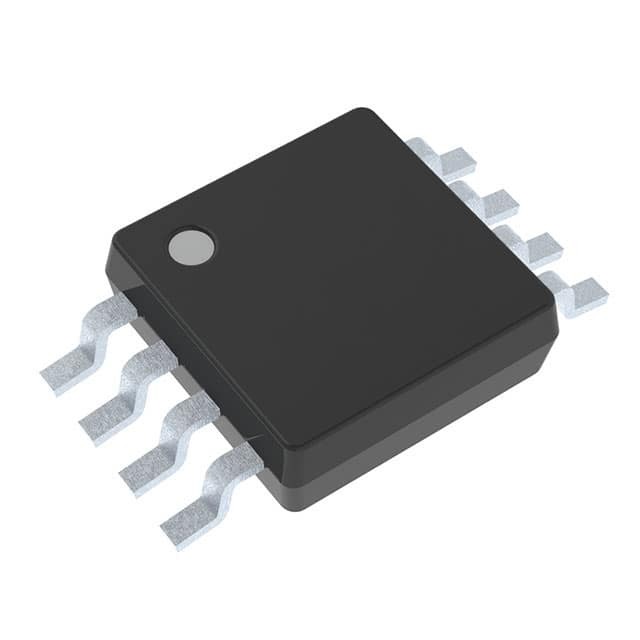

The MAX6304CUA from Maxim Integrated is a highly reliable microprocessor (µP) supervisory circuit that provides essential monitoring and control functions for microprocessor systems. This compact and efficient device is housed in an 8-pin µMAX package, making it an ideal choice for space-constrained applications.

Designed to maintain system integrity, the MAX6304CUA offers a range of features that ensure the stable operation of µP systems. It provides a watchdog timer, a manual reset input, and a reset output. The watchdog timer keeps the µP system in check by resetting it if it does not receive a "petting" signal within a preset time frame, which helps to prevent system hang-ups and malfunctions. The manual reset input allows for an external signal to initiate a system reset, offering an additional layer of control.

The reset output of the MAX6304CUA is guaranteed to be in the correct state for VCC down to 1V, which ensures that the µP and other critical components are reset properly during power-up, power-down, and brownout conditions. The device can monitor power supplies of 1.2V, 1.8V, 2.5V, 3V, 3.3V, and 5V, which makes it versatile for various system voltages. The reset output is available in either active-high or active-low configurations, providing flexibility to work with different system designs.

Another notable feature of the MAX6304CUA is its low power consumption, drawing a minimal quiescent current. This makes it particularly well-suited for battery-powered applications where power efficiency is critical. Additionally, the device's immunity to short VCC transients ensures reliable operation under fluctuating power conditions.

Overall, the MAX6304CUA by Maxim Integrated is a robust and versatile supervisory circuit that offers essential protection features for microprocessor systems. With its compact form factor, low power consumption, and comprehensive monitoring capabilities, it is an excellent choice for a wide range of applications, including portable devices, embedded systems, and industrial controls.
