Maxim Integrated's MAX7311AUG+T I/O Expander

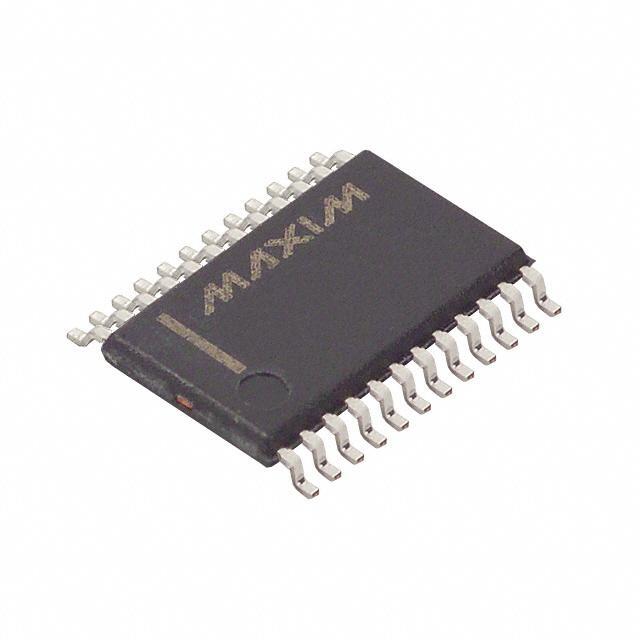

The MAX7311AUG+T from Maxim Integrated is a versatile I/O expander that allows for the extension of the number of I/O points available to a microcontroller or microprocessor system. This particular device comes in a compact 24-pin TSSOP package, making it a space-saving solution for designs where PCB real estate is at a premium.

With its 16-bit I/O port expander with an I2C-compatible serial interface, the MAX7311AUG+T provides an easy way to add more digital interfaces to your system. Each of the 16 I/O ports can be independently configured as either an input or an output, giving designers flexibility in their applications. The device also supports hot insertion, which means it can be added to a system without needing to power down the system, enhancing maintenance and upgrade capabilities.

Additionally, the MAX7311AUG+T offers built-in pull-up resistors on the I/O lines, which can be enabled or disabled through software, further simplifying the design process by reducing external component requirements. Its operating voltage ranges from 2.7V to 5.5V, making it suitable for both 3.3V and 5V systems and ensuring compatibility with a wide range of microcontrollers and processors.

For systems requiring power conservation, the MAX7311AUG+T features a low standby current, which is ideal for battery-operated devices. It also includes an interrupt output that can be configured to alert the host controller when input states change, thereby reducing the need for constant polling and helping to minimize power consumption.

The MAX7311AUG+T is perfect for applications such as portable devices, gaming consoles, and industrial control systems, where additional I/Os are necessary but space and power are limited. Its robust feature set and ease of use make it a go-to component for expanding system capabilities without the need for a complete redesign.

Overall, Maxim Integrated's MAX7311AUG+T I/O expander is a highly efficient and reliable solution for system designers looking to enhance their products with additional digital I/O capabilities while maintaining a compact form factor.
