The MAX9634WERS+T from Maxim Integrated is a high-performance, single operational amplifier (op-amp) designed for precision applications that require low power consumption and minimal space. This device is a part of Maxim's MAX9634 series, known for its micro-power, high-side current-sense amplifiers with a voltage reference.

Key Features

• Low Power Consumption: The MAX9634WERS+T is optimized for battery-powered and portable applications, with quiescent current as low as 1μA, making it an ideal solution for power-sensitive designs.
• High Accuracy: It offers a precision current-sensing capability with an input offset voltage of only 250μV (max) and a gain error of 0.5% (max), ensuring accurate measurements in high-performance systems.
• Wide Input Common-Mode Range: The device operates with a common-mode voltage range from -0.1V to +28V, accommodating a broad spectrum of signal levels.
• Integrated Voltage Reference: An integrated 1.25V voltage reference provides a stable reference voltage, which can be used for various applications including threshold detection and level shifting.

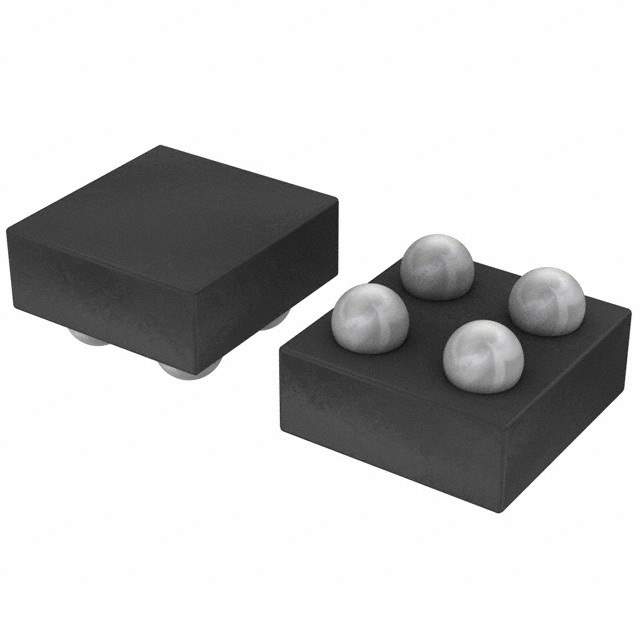

• Small Footprint: The MAX9634WERS+T comes in a tiny, space-saving 4-bump WLP (Wafer-Level Package) and a 6-pin SOT23 package, making it suitable for compact circuit designs.

Applications

The MAX9634WERS+T is versatile and can be used in a wide range of applications, including:

• Battery Management Systems
• Portable and Wearable Devices
• Power Management Circuits
• Analog Level Sensors
• Current Monitoring in Embedded Systems

Technical Specifications

With an operating temperature range of -40°C to +125°C, the MAX9634WERS+T is designed to perform reliably in extreme conditions. The device is also RoHS compliant, ensuring adherence to environmental standards and regulations.

For detailed technical information, reference designs, and support tools, visit Maxim Integrated's official website or contact their customer support for assistance in integrating the MAX9634WERS+T into your next project.
