The MAX976EUA+T from Maxim Integrated is a high-performance, low-power, dual voltage comparator that is designed to provide precision voltage comparison solutions for a wide range of applications. This device is part of Maxim's renowned family of analog and mixed-signal products, which are well-known for their reliability, accuracy, and innovative features.

Key Features

• Supply Voltage Range: The MAX976EUA+T operates from a single +2.5V to +5.5V supply, making it versatile for both 3V and 5V systems.
• Low Power Consumption: With a quiescent current of just 10μA per comparator at +3V, this device is an excellent choice for battery-powered and portable applications where power efficiency is critical.
• Fast Response Time: The comparator features a propagation delay of typically 200ns, ensuring quick response for high-speed signal processing.
• Dual Comparators: It includes two independent voltage comparators in a single package, providing space-saving benefits and simplifying design complexity.
• Input Voltage Range: The input voltage range extends from the negative supply rail to within 1.3V of the positive supply rail, offering a wide dynamic range for signal comparison.
• Output Stage: The push-pull TTL/CMOS-compatible outputs can drive loads directly without pull-up resistors, further reducing component count and system complexity.

Applications

The MAX976EUA+T is ideal for a variety of applications, including:

• Battery monitoring systems
• Zero-crossing detectors
• Window comparators
• Level shifters
• Relay drivers
• High-speed signal processing

Package and Quality

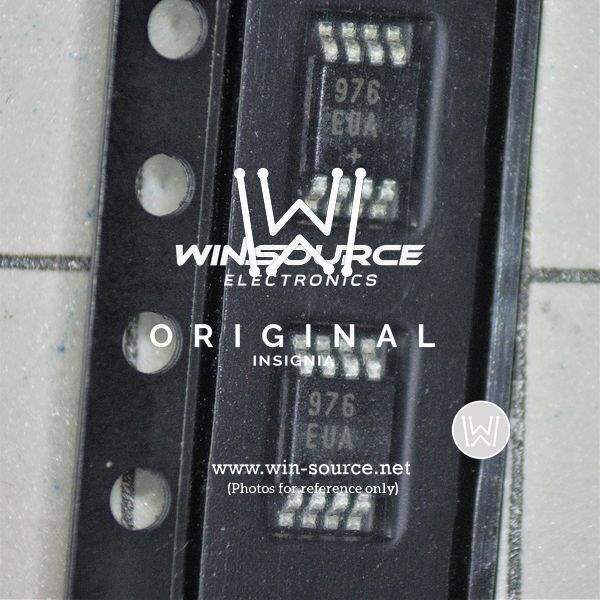

Encased in a compact 8-pin μMAX package, the MAX976EUA+T offers a space-efficient solution for PCB layouts. Maxim Integrated ensures high-quality standards, and the device is RoHS compliant, adhering to environmental regulations.

Overall, the MAX976EUA+T is a testament to Maxim Integrated's commitment to providing high-quality, precision-engineered components suitable for a diverse array of electronic systems.
