The Maxim Integrated MX7547LCWG is a precision, dual 12-bit digital-to-analog converter (DAC) designed to provide high-performance digital-to-analog conversion in a compact package. This component finds its applications in a wide range of sectors including industrial control systems, automated test equipment, and high-resolution video graphics systems.

Key Features


• High Resolution: The MX7547LCWG offers 12-bit resolution, enabling fine-grained analog output for applications requiring high precision.

• Dual DAC Channels: With two independent DAC channels, it can simultaneously output two analog signals, allowing for more complex signal generation and processing.

• Low Power Consumption: Designed with power efficiency in mind, this DAC is suitable for low-power applications and battery-operated devices.

• Flexible Reference Inputs: It supports both unipolar and bipolar reference inputs, giving designers the flexibility to choose the reference best suited for their application.

• Wide Operating Temperature Range: The device can operate over a temperature range of -40°C to +85°C, ensuring reliable performance in harsh environments.


Performance Specifications

The MX7547LCWG boasts a fast settling time and low glitch energy, which minimizes output errors and ensures a stable analog output. Its high linearity reduces distortion and maintains signal fidelity across the entire output range.

Package and Integration

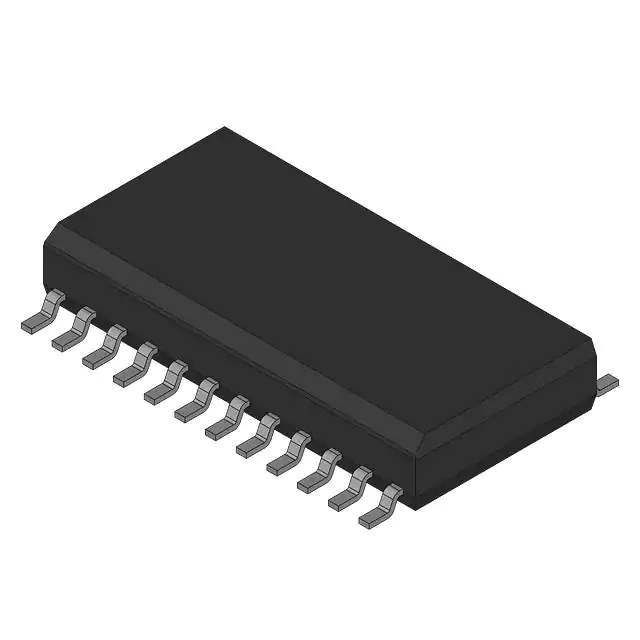

Enclosed in a 24-pin Wide Body SOIC package, the MX7547LCWG is compact and suitable for space-constrained applications. Its digital interface is TTL/CMOS compatible, which allows for easy integration with a variety of microprocessors and digital systems.

Applications

This DAC is ideal for closed-loop servo-control, process control equipment, and other applications where accuracy and stability are paramount. Its dual-channel output also makes it a good fit for multi-axis control systems and complex waveform generation.

Conclusion

The Maxim Integrated MX7547LCWG stands out as a reliable and precise component that meets the demands of high-accuracy digital-to-analog conversion. Its dual-channel capability, coupled with low power consumption and robust performance, makes it a versatile choice for engineers and designers in a multitude of advanced electronic systems.
