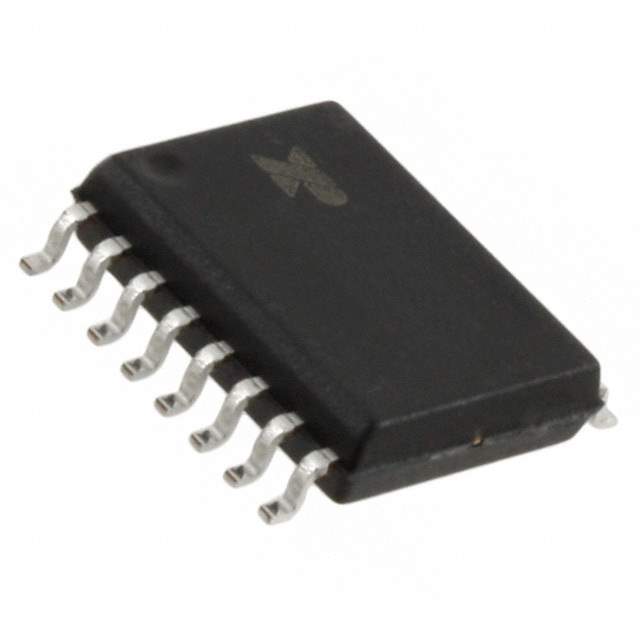

The SP486ET-L/TR is a low-power, half-duplex RS-485 transceiver from MaxLinear Inc. Designed for robust communication in industrial environments, it ensures reliable data transmission over long distances. This transceiver is ideal for applications requiring efficient power usage and resistance to noise. The SP486ET-L/TR operates from a single 3.3V or 5V power supply and provides protection against ESD (Electrostatic Discharge).

Applications

• Industrial Automation
• Motor Control
• Building Automation
• Security Systems
• Process Control
• Networking

Features

• Half-Duplex RS-485 Transceiver
• Low Power Consumption
• Single 3.3V or 5V Power Supply
• High Data Rate up to 10 Mbps
• Thermal Shutdown Protection
• Current Limiting for Driver Overload Protection
• Enhanced ESD Protection

Benefits

• Ensures reliable data communication in noisy environments.
• Suitable for long-distance data transmission.
• Reduces power consumption, extending battery life in portable applications.
• Protects against thermal overload and driver overload, enhancing reliability.
• Offers enhanced ESD protection for robust performance in harsh environments.

The SP486ET-L/TR is a half-duplex transceiver, which means it can either transmit or receive data at a given time but not simultaneously. Its robust design includes thermal shutdown protection, preventing damage from overheating. The driver output is current limited to protect against overload conditions. The device is designed to withstand high levels of ESD, making it suitable for use in environments where electrostatic discharge is a concern. The /TR suffix signifies that the product is packaged in tape and reel for automated assembly.
