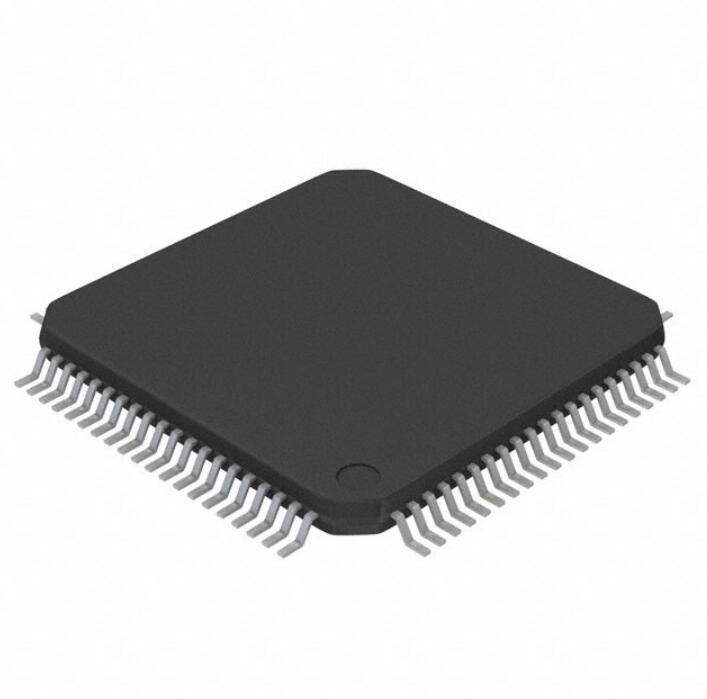

Same model may have multiple batches, images only for reference.

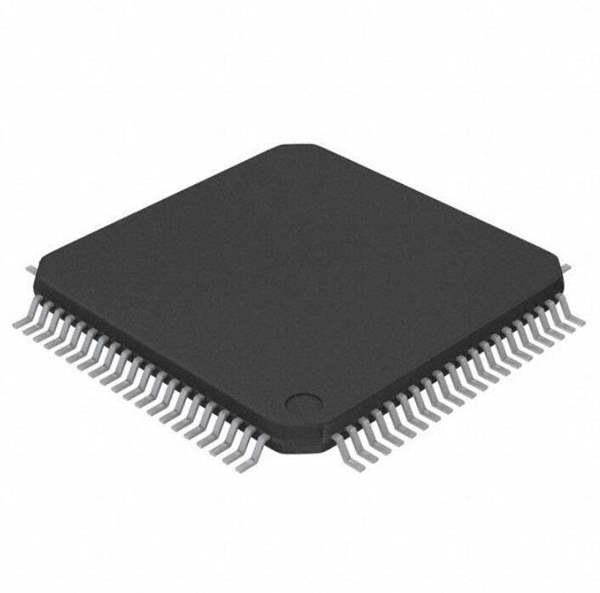

SP505BCM-L MaxLinear, Inc.
Same model may have multiple batches, images only for reference.

SP505BCM-L

Part No SP505BCM-L
Manufacturer MaxLinear Inc
Catalog Interface - Drivers, Receivers, Transceivers
Description IC TRANSCEIVER FULL 7/7 80LQFP
Datasheet
SP505BCM-L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203022-SP505BCM-L
Win Source Part Number Cross
Manufacturer MaxLinear, Inc.
Category Integrated Circuits (ICs) Interface Drivers, Receivers, Transceivers
Package Tray
Product Status Obsolete
Type Transceiver
Protocol Multiprotocol
Duplex Full
Data Rate 16Mbps
Voltage - Supply 4.75V ~ 5.25V
Ultra Librarian 3D Model Ultra Librarian SP505BCM-L CAD Model

Description

The 1203022 is a transceiver integrated circuit (IC) designed by MaxLinear, Inc. It falls under the category of Interface Drivers, Receivers, and Transceivers. This transceiver operates on a full duplex mode and supports a data rate of 16Mbps. It requires a voltage supply of 4.75V to 5.25V. The 1203022 is a multiprotocol transceiver, making it suitable for various communication protocols. It comes in a tray package and is now considered obsolete. Despite its obsolescence, the 1203022 remains a reliable choice for applications that require transceiver functionality.
