Products specifications

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDD
Series SOD-323
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 5.8V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 400W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 40pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-323
Supplier Device Package SOD-323
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362331-ESD3B5CM
Ultra Librarian 3D Model Ultra Librarian ESD3B5CM CAD Model

Description

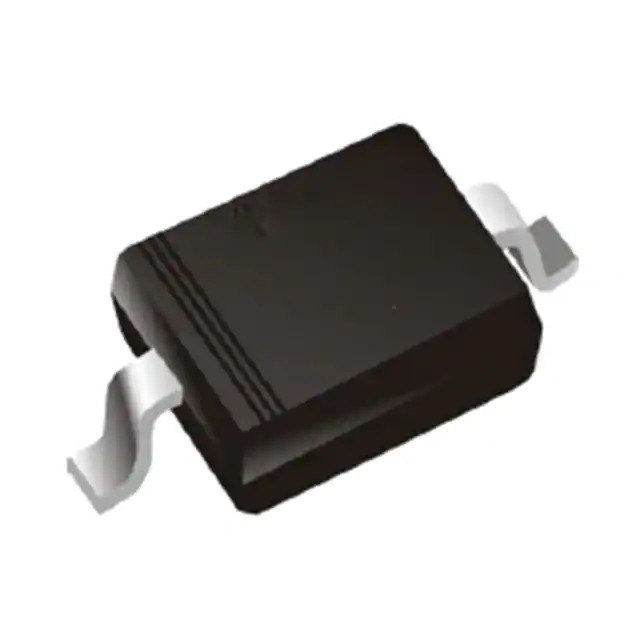

The 1362331-ESD3B5CM is a bidirectional Zener diode transient voltage suppressor (TVS) in a SOD-323 package.

  • Protection Type: It provides bidirectional protection against voltage spikes and transients in electronic circuits.
  • Reverse Standoff Voltage: With a reverse standoff voltage of 5V
  • Breakdown Voltage: and a breakdown voltage of 5.8V, it effectively clamps the voltage @ a safe level.
  • Peak Pulse Current: The 1362331-ESD3B5CM has a peak pulse current rating of 1A (8/20µs)
  • Peak Power: and a peak power rating of 400W.
  • Protection Features: It offers power line protection and has a capacitance of 40pF @ 1MHz.
  • Mounting Type: This TVS diode is surface mountable and operates in a wide temperature range from -55°C to 150°C.
  • Series: It is an active product in the SOD-323 series by MDD, a reputable manufacturer in the industry.
  • Applications: The 1362331-ESD3B5CM is commonly used in applications that require bidirectional protection against electrostatic discharge (ESD) and voltage surges, such as in communication equipment, consumer electronics, and automotive systems.
