Part No SM24QC
Manufacturer MDD
Catalog TVS - Diodes

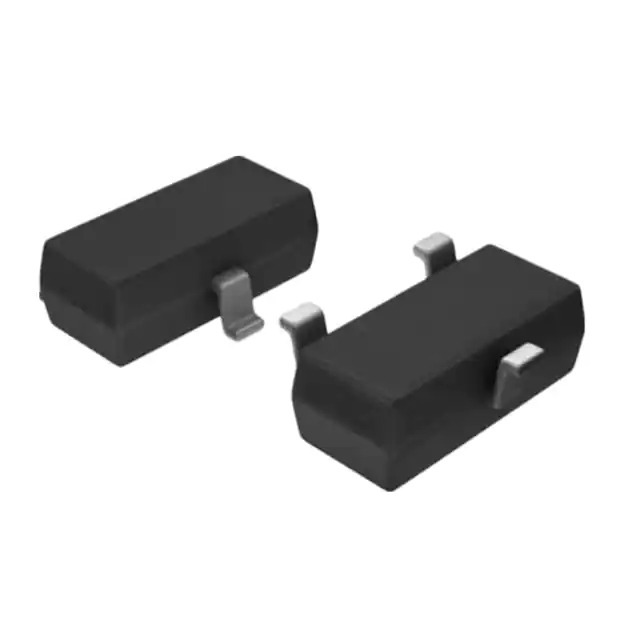

Description TVS DIODE 24VWM 36VC SOT23 / Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23
Datasheet
SM24QC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDD
Series SOT-23
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 2
Voltage - Reverse Standoff (Typ) 24V (Max)
Voltage - Breakdown (Min) 26V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 200W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 17pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOT-23
Supplier Device Package SOT-23
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362288-SM24QC
Ultra Librarian 3D Model Ultra Librarian SM24QC CAD Model

Description

The 1362288-SM24QC is a bidirectional TVS diode designed for circuit protection against transient voltage events.

  • Diode Type: Zener
  • Reverse Standoff Voltage: 24V
  • Minimum Breakdown Voltage: 26V
  • Peak Pulse Current: 1A (10/1000µs)
  • Peak Power Rating: 200W
  • Protection: Power Line
  • Capacitance: 17pF @ 1MHz
  • Series: SOT-23
  • Mounting Type: Surface Mount
  • Package: SOT-23
  • Operating Temperature: -55°C to 150°C (TJ)
  • REACH: Unaffected
  • ECCN: EAR99
