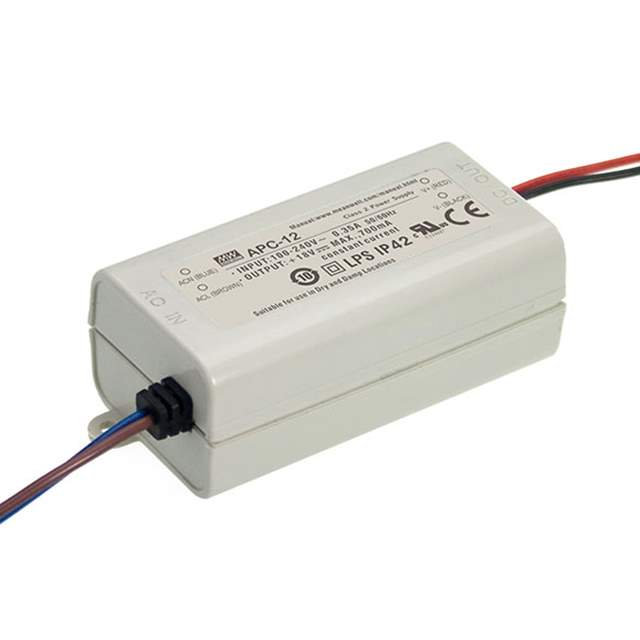

Same model may have multiple batches, images only for reference.

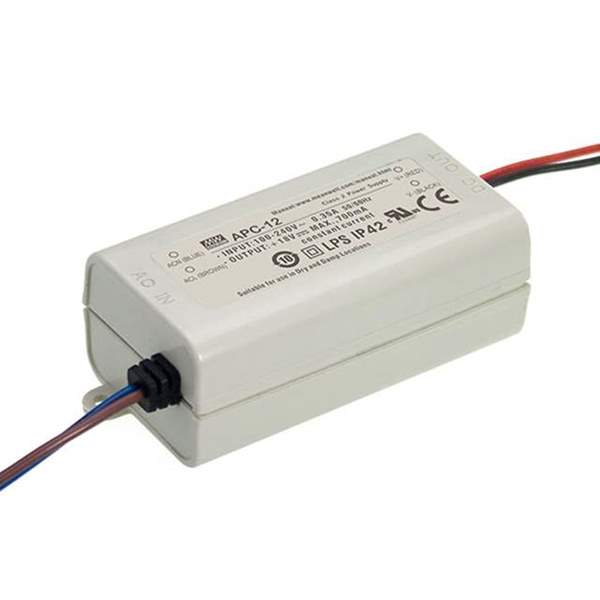

APC-12-700 Real Image
Same model may have multiple batches, images only for reference.

APC-12-700

Part No APC-12-700
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRIVER CC AC/DC 9-18V 700MA / 700mA 9 ~ 18V Constant Current LED Driver AC DC Converter Topology 1 Output
Datasheet
APC-12-700 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series APC-12 (12W)
Package Box
Type Constant Current
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Voltage - Input (Max) 264VAC
Voltage - Output 9 ~ 18V
Current - Output (Max) 700mA
Power (Watts) 13 W
Voltage - Isolation 3.75 kV
Features OVP, SCP
Ratings IP42
Temperature Range - Operating -30°C ~ 70°C
Efficiency 80%
Termination Style Wire Leads
Dimension 3.03" L x 1.57" W x 1.14" H (77.0mm x 40.0mm x 29.0mm)
Approval Agency CCC, CE, cURus
Mounting Type Chassis Mount
Base Product Number APC-12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Names APC-12-700-ND,1866-1115
Standard Package 120
Win Source Part Number 1229201-APC-12-700
Ultra Librarian 3D Model Ultra Librarian APC-12-700 CAD Model

Description

The APC-12-700 is a constant current LED driver from the APC-12 (12W) series manufactured by MEAN WELL USA Inc.

  • Series: APC-12 (12W)
  • Power Rating: 13W
  • Voltage Output: 9 ~ 18V
  • Efficiency: 80%
  • IP Rating: IP42
  • Voltage Isolation: 3.75 kV
  • Current Output: 700mA
  • Voltage Input Range: 90VAC to 264VAC
  • Features: OVP and SCP
  • Dimension: 3.03" L x 1.57" W x 1.14" H (77.0mm x 40.0mm x 29.0mm)
  • ECCN: EAR99
