Same model may have multiple batches, images only for reference.

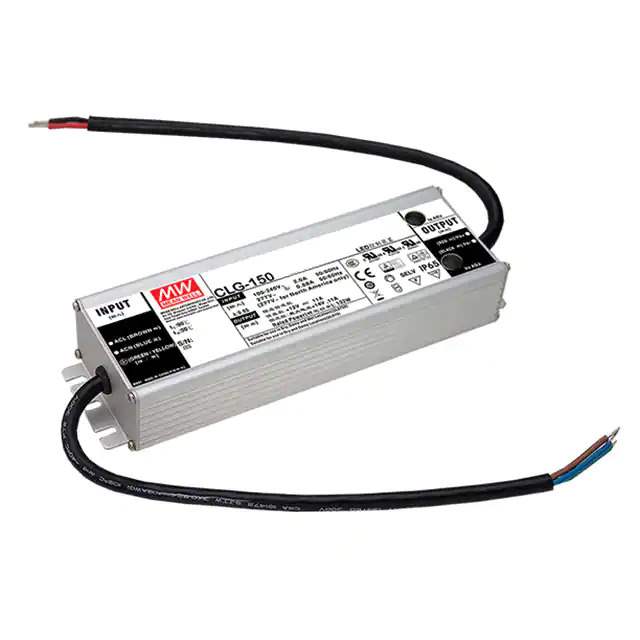

CLG-150-24A Real Image
Same model may have multiple batches, images only for reference.

CLG-150-24A

Part No CLG-150-24A
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRVR CC/CV AC/DC 18-24V 6.3A
Datasheet
CLG-150-24A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - LED Drivers
Mfr Mean Well Enterprises Co., Ltd.
Series CLG-150 (150W)
Package Box
Product Status Obsolete
Programmable Not Verified
Type Constant Current, Voltage
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Voltage - Input (Max) 295VAC
Voltage - Output 18 ~ 24V
Current - Output (Max) 6.3A
Power (Watts) 151 W
Voltage - Isolation 3.75 kV
Features OCP, OTP, OVP, SCP
Ratings IP65
Temperature Range - Operating -30°C ~ 70°C
Efficiency 90%
Termination Style Wire Leads
Size / Dimension 7.80" L x 2.68" W x 1.53" H (198.2mm x 68.0mm x 38.8mm)
Approval Agency CB, CCC, CE, cURus, PSE, TUV
Mounting Type Chassis Mount
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9530
Win Source Part Number 846842-CLG-150-24A
Ultra Librarian 3D Model Ultra Librarian CLG-150-24A CAD Model

Description

The CLG-150-24A is a 150W constant current/voltage LED driver from the CLG-150 series.

  • Connection: wire leads
  • Package: box package
  • Voltage Output: 18V to 24V
  • Maximum Output Current: 6.3A
  • Protection: overcurrent protection (OCP), overtemperature protection (OTP), overvoltage protection (OVP), and short circuit protection (SCP)
  • Dimensions: 7.80" L x 2.68" W x 1.53" H
  • Efficiency: 90%
  • Operating Temperature: -30°C to 70°C
  • Certifications: CB, CCC, CE, cURus, PSE, and TUV
