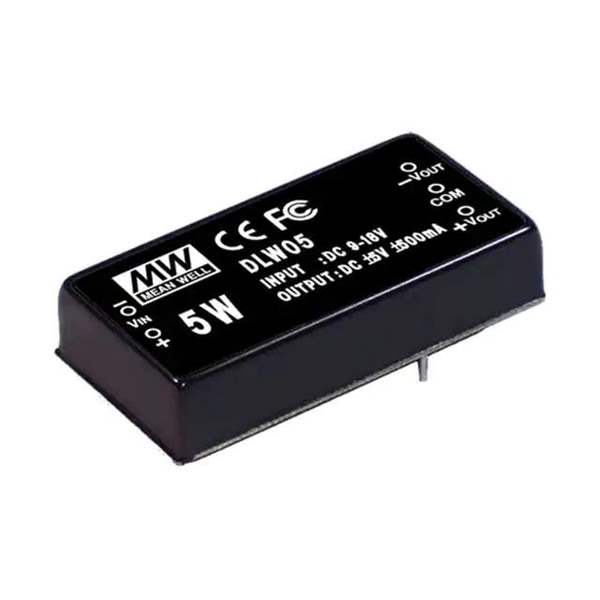

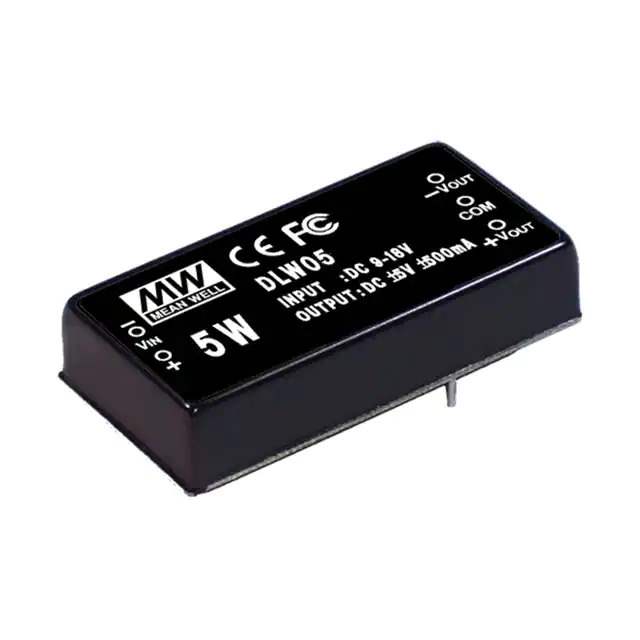

DLW05C-15 Real Image
Same model may have multiple batches, images only for reference.

DLW05C-15

Part No DLW05C-15
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 5W / Isolated Module DC DC Converter 2 Output 15V -15V 167mA, 167mA 36V - 72V Input
Datasheet
DLW05C-15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mean Well Enterprises Co., Ltd.
Series DLW05 (5W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 72V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 167mA, 167mA
Power (Watts) 5 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features OCP, SCP
Temperature Range - Operating -25°C ~ 71°C (With Derating)
Efficiency 85%
Mounting Type Through Hole
Package / Case 5-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.3mm)
Base Product Number DLW05
Standard Package 400 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 847205-DLW05C-15
Ultra Librarian 3D Model Ultra Librarian DLW05C-15 CAD Model

Description

The DLW05 (5W) power supply is a compact and efficient solution for various applications. DLW05 from Traco Power.

  • Type: Isolated Module
  • Size: 2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.3mm)
  • Application: ITE (Commercial)
  • Power Rating: 5W
  • Voltage Input: 36V to 72V
  • Voltage Isolation: 1 kV
  • Efficiency: 85%
  • Outputs: Two Outputs
  • Output Voltage 1: 15V
  • Output Voltage 2: -15V
  • Maximum Current Output: 167mA for both outputs
  • Mounting Type: Through-Hole
  • Operating Temperature: -25°C ~ 71°C (With Derating)
  • Approvals: CB, CE, cURus, and TUV
